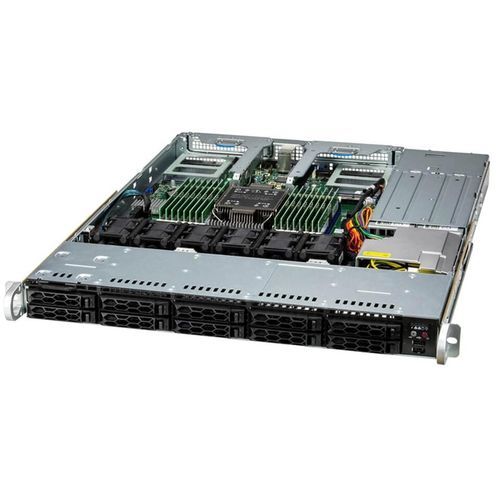

RAID server SYS-111C-NR

networkvideoGPU

Virtualization, HPC, CDN, Edge Nodes, Cloud Computing, Data Center Optimized, Storage Headnode, Key Features Intel® C741 Chipset; Dual AIOM (OCP 3.0) for networking (NCSI available), 1 dedicated IPMI LAN; 10x front hot-swap 2.5" SATA3 drive bays (Optional all 10 hybrid Gen5 NVMe), SAS3 with additional SAS controller card; Redundant Now Titanium 860W Power Supplies; Form Factor Enclosure: 437 x 43 x 597mm (17.2" x 1.7" x 23.5") Package: 605 x 197 x 822mm (23.8" x 7.8" x 32.4") Processor Single Socket E (LGA-4677) Up to 64C/128T; Up to 320MB Cache GPU Max GPU Count: Up to 2 single-width GPUs Supported GPU: NVIDIA PCIe: T1000, L4, A2 CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect System Memory Slot Count: 16 DIMM slots/8 Channels Drive Bays Configuration Default: Total 10 bays 10 front hot-swap 2.5" PCIe 5.0 NVMe*/SAS*/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110) Expansion Slots Default 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) On-Board Devices SATA: SATA (6Gbps) ; RAID 0/1/5/10 support NVMe: NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) Chipset: Intel® C741 Network Connectivity: Via AIOM Input / Output LAN: 1 RJ45 1 GbE Dedicated BMC LAN port(s) Video: 1 VGA port(s) Serial: 1 COM port(s) (Rear) TPM: 1 TPM header
