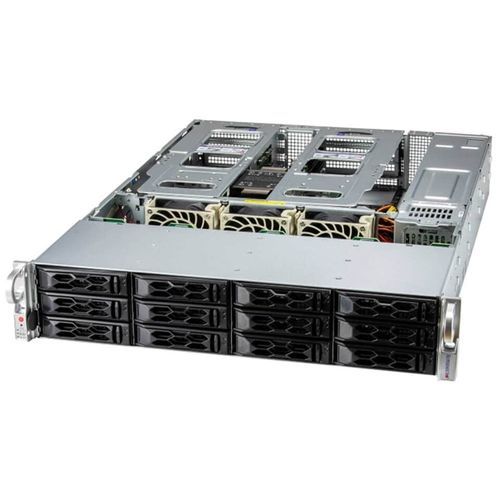

RAID server SYS-521C-NR

networkvideoGPU

Cloud Computing, Data Center Optimized, Network Appliance, AI inferencing, ML training, Database/Storage, Key Features Up to 350W TDP; Intel® C741 Chipset; Single AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN; 12 Front hot-swap 3.5" SATA3 drive bays (Optional 2 hybrid Gen5 NVMe), SAS3 with additional SAS controller card; Redundant Titanium 1200W Power Supplies; Form Factor Enclosure: 437 x 89 x 648mm (17.2" x 3.5" x 25.5") Package: 679 x 296 x 876mm (26.7" x 11.4" x 34.5") Processor Single Socket E (LGA-4677) Up to 64C/128T; Up to 320MB Cache GPU Max GPU Count: Up to 2 double-width or 4 single-width GPUs Supported GPU: NVIDIA PCIe: H100, L40, T1000, RTX A6000, RTX A4000, RTX A2000, L40S, L4, A40, A30, A16, A2 CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect System Memory Slot Count: 16 DIMM slots/8 Channels Drive Bays Configuration Default: Total 12 bays 10 front hot-swap 3.5" SAS*/SATA drive bays 2 front hot-swap 3.5" PCIe 5.0 NVMe*/SAS*/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110) Expansion Slots Default 4 PCIe 5.0 x8 FHFL slots 2 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option A 2 PCIe 5.0 x16 FHFL double-width slots 2 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) On-Board Devices SATA: SATA (6Gbps) ; RAID 0/1/5/10 support NVMe: NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) Chipset: Intel® C741 Network Connectivity: Via AIOM Input / Output LAN: 1 RJ45 1 GbE Dedicated BMC LAN port(s) Video: 1 VGA port(s)
