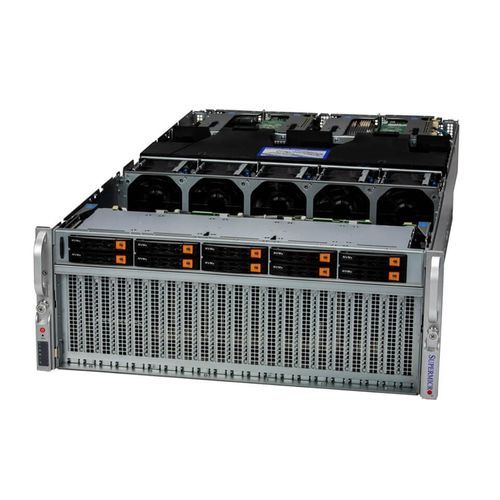

RAID server SYS-420GU-TNXR

networkvideoGPU

High Performance Computing, AI/Deep Learning Training, Key Features Intel® C621A Chipset; Highest GPU communication using NVIDIA® NVLINK™ Supports HGX A100 4-GPU 40GB (HBM2) or 80GB (HBM2e) 4U system with NVIDIA® HGX™ A100 4-GPU 6 PCIe Gen 4.0 X16 LP Slots; Flexible networking options; Up to 10x 2.5" Hot-swap NVMe/SATA drive bays 1 M.2 NVMe/SATA via Intel® C621A PCH chipset (for boot drive only); 5 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control; 4x 3000W redundant Titanium level power supplies; Form Factor Enclosure: 449 x 175.6 x 833mm (17.67" x 7" x 32.79") Package: 700 x 370 x 1260mm (27.55" x 14.57" x 49.6") Processor Dual Socket P+ (LGA-4189) Up to 40C/80T; Up to 60MB Cache per CPU GPU Max GPU Count: Up to 4 onboard GPUs CPU-GPU Interconnect: PCIe 4.0 x16 Switch Dual-Root System Memory Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Drive Bays Configuration Default: Total 10 bays 10 front hot-swap 2.5" NVMe/SATA drive bays M.2: 2 M.2 NVMe/SATA slots (M-key) Expansion Slots Default 6 PCIe 4.0 x16 LP slots On-Board Devices SATA: SATA (6Gbps) ; RAID 0/1/5/10 support Chipset: Intel® C621A Network Connectivity: 2 RJ45 10GbE with Intel® X710 Input / Output 1 VGA port(s) System Cooling Fans: 5 removable heavy-duty Fan(s) Power Supply 4x 3000W Redundant Titanium Level (96%) power supplies System BIOS BIOS Type: AMI 32MB SPI Flash EEPROM Management SuperCloud Composer; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!
