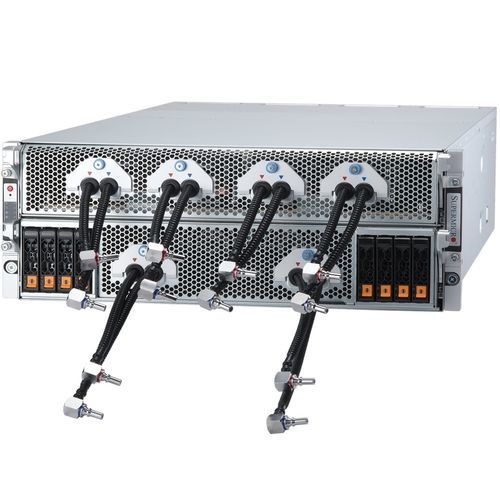

Network server SYS-421GE-TNHR2-LCC

videoGPU4U

High Performance Computing, AI/Deep Learning Training, Industrial Automation, Retail, Healthcare, Conversational AI, Business Intelligence & Analytics, Drug Discovery, Climate and Weather Modeling, Finance & Economics, Key Features 8 PCIe Gen 5.0 X16 LP 2 PCIe Gen 5.0 X16 FHHL Slots, 2 PCIe Gen 5.0 X16 FHHL Slots (optional); Flexible networking options; 2 M.2 NVMe for boot drive only Optional: 8x 2.5" Hot-swap SATA drive bays 8x 2.5" Hot-swap NVMe drive bays; 4 heavy duty fans with optimal fan speed control; 4x 5250W(2+2) Redundant Power Supplies, Titanium Level; Form Factor Enclosure: 449 x 174 x 842mm (17.7" x 6.85" x 33.2") Package: 1216 x 330 x 670mm (48" x 13" x 26.4") Processor Dual Socket E (LGA-4677) Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM) 64C/128T; 320MB Cache per CPU GPU Max GPU Count: Up to 8 onboard GPUs Supported GPU: NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB) CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect System Memory Slot Count: 32 DIMM slots Drive Bays Configuration Default: Total 8 bays 8 front hot-swap 2.5" NVMe drive bays M.2: 2 M.2 NVMe slots (M-key) Expansion Slots Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots Option A 8 PCIe 5.0 x16 LP slots 4 PCIe 5.0 x16 FHHL slots On-Board Devices Chipset: Intel® C741 Network Connectivity: 2 SFP28 25GbE with Broadcom® BCM57414 (optional) 2 RJ45 10GbE with Intel® X710-AT2 (optional) Input / Output 1 VGA port(s) System Cooling Fans: 4 Fan 8cm Fan(s) Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional) Power Supply 4x 5250W Redundant Titanium (certification pending) Level (96%) power supplies System BIOS BIOS Type: AMI 32MB SPI Flash EEPROM
