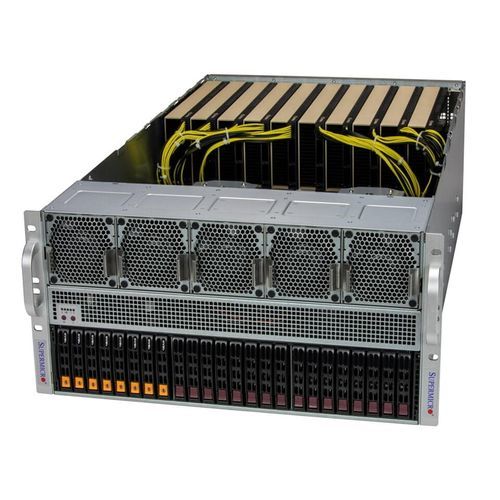

Network server SYS-521GE-TNRT

videoGPU5U

High Performance Computing, VDI, AI/Deep Learning Training, Media/Video Streaming, Cloud Gaming, Animation and Modeling, Design & Visualization, 3D Rendering, Diagnostic Imaging, Key Features AIOM/OCP 3.0 Support 13 PCIe Gen 5.0 X16 FHFL Slots; 8x HOT SWAP 2.5” SATA/SAS (AOC required) 8x 2.5" Hot-swap SATA drive bays 8x2.5" Hot-swap NVMe drive bays; 10 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control; 4x 2700W (2+2) Redundant Power Supplies, Titanium Level; Form Factor Enclosure: 437 x 222.5 x 737mm (17.2" x 8.75" x 29") Package: 720 x 440 x 1080mm (28.34" x 17.32" x 42.51") Processor Dual Socket E (LGA-4677) Up to 64C/128T; Up to 320MB Cache per CPU GPU Max GPU Count: Up to 10 double-width or 10 single-width GPUs Supported GPU: NVIDIA PCIe: H100 NVL, H100, L40S, A100 CPU-GPU Interconnect: PCIe 5.0 x16 Switch Dual-Root GPU-GPU Interconnect: NVIDIA® NVLink® Bridge (optional) System Memory Slot Count: 32 DIMM slots Drive Bays Configuration Default: Total 16 bays 8 front hot-swap 2.5" NVMe drive bays 8 front hot-swap 2.5" SATA drive bays Option A: Total 24 bays 8 front hot-swap 2.5" NVMe drive bays 8 front hot-swap 2.5" NVMe* drive bays 8 front hot-swap 2.5" SATA drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe slots (M-key) Expansion Slots Default 13 PCIe 5.0 x16 FHFL slots On-Board Devices Chipset: Intel® C741 Network Connectivity: 2 RJ45 10GbE with Intel® X710-AT2 Input / Output 1 VGA port(s) System Cooling Fans: 10 heavy duty fans with optimal fan speed control Air Shroud: 1 Air Shroud Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional)
