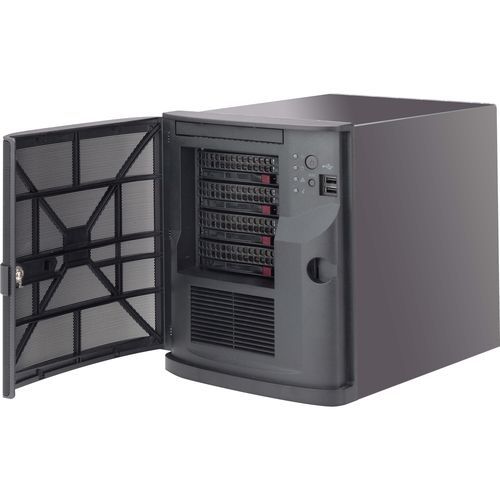

Rack-mount chassis 721TQ-350B

1Ucompactbackplane

Support wide range of Mini-ITX (6.75"x 6.75") motherboards 1 low-profile expansion slot for add-on cards 350W 80 PLUS Gold-certified High-efficiency power supply Dimensions Height - 9.45" (240.03 mm) Width - 8.27" (210.06 mm) Depth - 11" (279.4 mm) Gross Weight - 15 lbs (6.8 kg) Net Weight - 13.5 lbs (6.12 kg) Packaging (W x H x L) - 12.4" (315 mm) x 13.78" (350 mm) x 16.14" (410 mm) Available Color - Black Expansion Slots 4x 3.5" hot-swap SAS/SATA drive bay Backplane 4x3.5" SAS2/SATA3 backplane w/SES-II Peripheral Drives 1x slim DVD-ROM drive bay Front Panel Button - Power On/Off button System Reset button LED - Power status LED HDD activity LED 1 Network activity LEDs Fan Fail/System Over Heat LED Port - 2x USB 3.0 Port(s) Systems Cooling Fans - 1x 12cm rear exhaust fan(s) System Monitoring Chassis intrusion switch Operating Environment (System) Operating Temperature Range - 0°C - 40°C (32°F - 104°F) Non-Operating Temperature Range - -20°C - 60°C (-4°F - 140°F) Operating Relative Humidity Range - 10% - 85% (non-condensing) Non Operating Relative Humidity Range - 10% - 95% (non-condensing) Power Supply 350W 1U multi-output power supply Total Output Power and Input - 350W with Input 100 - 240Vac AC Input Frequency - 50-60Hz Dimensions (L x W x H) - 150 x 81.5 x 40.5 mm Output Type - 24pin ATX -12V - Max: 0.3A / Min: 0.05A +12V - Max: 28A / Min: 0.1A (100Vac - 240Vac) +5V - Max: 15A / Min: 0.2A +3.3V - Max: 10A / Min: 0.1A +5Vsb - Max: 2A / Min: 0.05A
