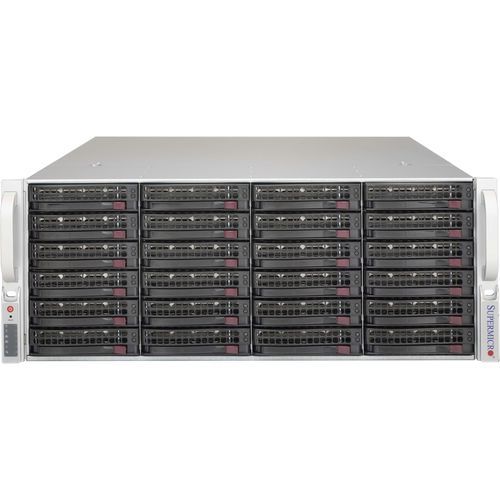

Rack-mount chassis 846BE2C-R1K03JBOD

4Ubackplanestorage

Cloud Backup, Data Replication, or High Density Archive Storage Applications Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements 1x IPMI port for Remote System Power on/off and system monitoring Support NTP for time synchronization & RTC battery backup 1000W (1+1) 96% efficient Titanium level power supplies 5 hot-plug redundant cooling fans Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications: Qualified SAS HBA / controller: AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller Dimensions Height - 7" (178 mm) Width - 17.2" (437 mm) Depth - 26" (660 mm) Gross Weight - 118 lbs (53.52 kg) Net Weight - 86 lbs (39 kg) Packaging (W x H x L) - 27" (686 mm) x 14.8" (376 mm) x 37.3" (947 mm) Available Color - Black Front Panel Button - Power On/Off button System Reset button Unit Identification (UID) button LED - 1 Network activity LEDs Systems Cooling Fans - 2x 8cm hot-swap exhaust fan(s) & air shroud 3x 8cm hot-swap redundant PWM cooling fan(s) Operating Environment (System) Operating Temperature Range - 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range - -40°C - 60°C (-40°F - 140°F) Operating Relative Humidity Range - 8% - 90% (non-condensing) Non Operating Relative Humidity Range - 5% - 95% (non-condensing) Power Supply 1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus Power Efficiency - 96%
