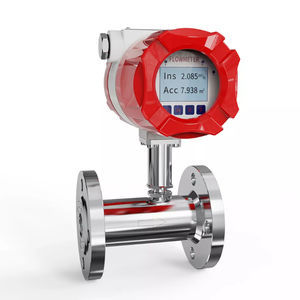

Turbine flow meter SUP-LWGY

for waterfor oilDN60 - 2"1/4

SUP-LWGY Turbine flowmeter thread connection SUP-LWGY series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe. Threaded type, simple to install and maintain, usually used for small diameter flow measurements: Male:DN4~DN100; female:DN15~DN50 Features Pipe diameter: DN4~DN100 Accuracy: 0.2% 0.5% 1.0% Power supply: 3.6V lithium battery; 12VDC; 24VDC Ingress protection: IP65 Product - Turbine flowmeter Model - SUP-LWGY Diameter Nominal - DN4~DN100 Nominal Pressure - 1.0MPa; 1.6MPa; 2.5MPa; 4.0MPa Accuracy - 0.5%R, 1.0%R Medium viscosity - Less than 5×10-6m2/s (for the liquid with >5×10-6m2/s, the flowermeter needs to be calibrated before using) Medium Temperature - +10...+30°C / +50...+86°F Power Supply - 3.6V lithium battery; 12VDC; 24VDC Output Signal - Three-wire pulse output, two-wire 4-20mA output Ingress protection - IP65 Introduction SUP-LWGY series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe.
