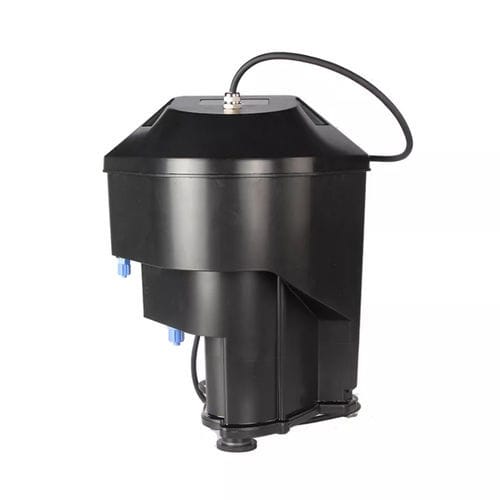

Turbidity sensor SUP-PTU8012

SUP-PTU-8012 widely used in such fields as sewage plants, Drinking water plants, water stations, surface water, and industries for inspecting the turbidity. Features Range: 0.01-100NTU Resolution: The deviation of reading in 0.001~40NTU is ±2% or ±0.015NTU, choose the bigger one; and it is ±5% in the range of 40-100NTU Flow Rate: 300ml/min≤X≤700ml/min Pipe Fitting: Injection Port: 1/4NPT; Discharge Outlet: 1/2NPT Specification Measure range - 0.01-100NTU Measurement Accuracy - The deviation of reading in 0.001~40NTU is ±2% or ±0.015NTU, choose the bigger one; and it is ±5% in the range of 40-100NTU Flow Rate - 300ml/min≤X≤700ml/min Pipe Fitting - Injection Port: 1/4NPT; Discharge Outlet: 1/2NPT Environment temp - 0~45℃ Calibration - Standard Solution Calibration, Water Sample Calibration, Zero Point Calibration Cable length - Three-meter standard cable, it is not recommended to extend Main materials - Main Body: ABS + SUS316 L, - Sealing Element: Acrylonitrile Butadiene Rubber - Cable: PVC Ingress protection - IP66 Weight - 2.1 KG
