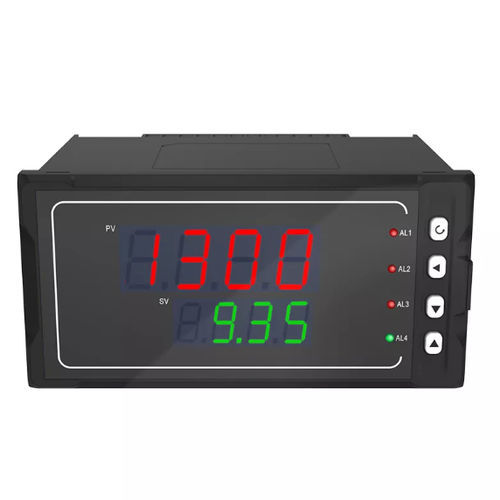

Level regulator SUP-1300

PID

SUP-1300 series easy fuzzy PID regulator adopts fuzzy PID formula for easy operation with measurement precision of 0.3%; 7 types of dimensions available, 33 types of signal input available; applicable to measurement of industrial process quantifiers including temperature, pressure, flow, liquid level, and humidity etc. Features Double four-digit LED display; 7 types of dimensions available; Standard snap-in installation; Power supply: AC/DC100~240V (Frequency 50/60Hz) Power consumption≤5W; DC12~36V Power consumption≤3W Product - Easy Fuzzy PID Regulator Model - SUP-1300 Display - Dual-screen LED display Dimension - A. 160*80*110mm B. 80*160*110mm C. 96*96*110mm D. 96*48*110mm E. 48*96*110mm F. 72*72*110mm H. 48*48*110mm Measurement accuracy - ±0.3%FS Transmission output - Analog output----4-20mA、1-5v、 0-10mA、0-5V、0-20mA、0-10V Alarm Output - With upper and lower limit alarm function, with alarm return difference setting；capacity： AC125V/0.5A(small)DC24V/0.5A(small)（Resistive load） AC220V/2A(big)DC24V/2A(big)（Resistive load） Note: When the load exceeds the relay contact capacity, please do not directly carry the load Power supply - AC/DC100~240V (Frequency 50/60Hz) Power consumption≤5W DC12~36V Power consumption≤3W Use environment - Operating temperature（-10~50℃）No condensation, no icing SUP-1300 series easy fuzzy PID regulator adopts fuzzy PID formula for easy operation with measurement precision of 0.3%; 7 types of dimensions available, 33 types of signal input available; applicable to measurement of industrial process quantifiers including temperature, pressure, flow, liquid level, and humidity etc.
