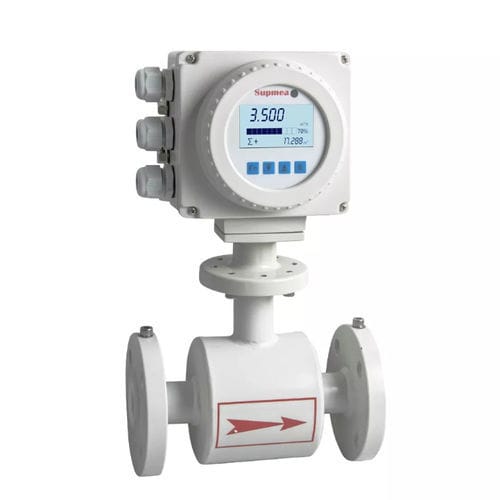

Electromagnetic flowmeter FMC240
volumefor waterfor acids

Electromagnetic flowmeter - FMC240  - Supmea Automation - volume / for water / for acids
Electromagnetic flowmeter - FMC240  - Supmea Automation - volume / for water / for acids
Electromagnetic flowmeter - FMC240  - Supmea Automation - volume / for water / for acids - image - 2
Electromagnetic flowmeter - FMC240  - Supmea Automation - volume / for water / for acids - image - 3
Add to favorites
Compare this product


Characteristics

Technology
electromagnetic
Type
volume
Fluid
for water, for acids
Pipe diameter
DN15 - 1/2", DN250 - 10", DN300 - 12"
Material
stainless steel, PTFE, PFA
Supply voltage
24 Vdc, 220VAC
Protection level
IP65, IP68
Other characteristics
precision
Process temperature

Max.: 120 °C
(248 °F)

Min.: -10 °C
(14 °F)

Process pressure

1.6 MPa

Precision

0.5 %

Description

FMC240 Electromagnetic meters are a leading choice to deliver the performance and precision your applications require. These meters are applicable for all conductive liquids, such as water, acids, alkalis, slurries and many others. Typical applications are monitoring of liquids, filling, dosing and precise measurement in custody transfer Strong anti-interference ability, under normal grounding conditions, the flow value can be displayed stably With lightning protection capability, it can be used in lightning-prone areas Measuring principle Mag meter works based on Faraday's law, when the liquid goes through the pipe at the flow rate of v with a diameter D, within which a magnetic flux density of B is created by an exciting coil, the following electromotive E is generated in proportion to flow speed v: E=K×B×V×D Where: E-Induced electromotive force K-Meter constant B-Magnetic induction density V-Average flow speed in cross-section of measuring tube D-Inner diameter of measuring tube MANUFACTURE When you place an order with Supmeaflow, your project will be manufactured in our factory by our highly skilled staff. Our ISO certificted factory have close control over production, minimising delays and allowing flexibility in delivery schedules. We are often able to reduce or in- crease our lead times on request to assist with progress on site. OEM & ODM We have the experience, capability, and R&D resources to make any OEM/OEM intégration a glowing success For our OEM/ODM production services, we provide function expansion, language customization and ap- pearance customization. Once customer approval is

Catalogs

No catalogs are available for this product.

See all of Supmea Automation‘s catalogs
