Resistance measuring instrument EddyCus® TF portable 1010SR

digitalinspectionfor sheet metal

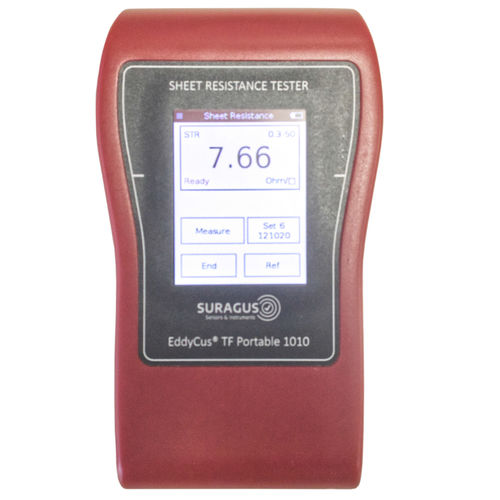

EddyCus® TF portable 1010SR – Handheld Sheet Resistance Tester The EddyCus® TF portable 1010SR is dedicated to contact sheet resistance measurements in industrial environments. It enables manual quality assurance in various industries. Data Sheet for EddyCus® TF portable 1010SR Measurement technology - Eddy current sensor Measurement mode - Realtime at constant distance / contact Substrates - Glass, foils etc. Substrate sizes - Flat samples > 150 mm x 150 mm (6 inch x 6 inch) Curved editions are available for several applications (windshields etc.) Measurement spot / high sensitivity zone - 40 mm diameter (1.6 inch) Power - Lithium ion battery up to 20 h Sheet resistance range (five setups available) - Type very low: 0.001 – 0.1 Ohm/sq Type low: 0.04 – 0.1 Ohm/sq Type standard: 0.3 – 30 Ohm/sq Type high: 0.3 – 50 Ohm/sq Type very high: 0.3 – 100 Ohm/sq Thickness measurement of thin films (e.g. copper) - Additional feature, available range is 5 nm – 500 µm (in accordance with sheet resistance) Emissivity range - Additional feature, available range is 0.003 – 0.5 Accuracy (for planar solid surfaces, e.g. glass) - 0.001 – 50 Ohm/sq: < 3% 50 – 100 Ohm/sq: < 5% Display - 2.8 inch colored touch screen Device dimensions (w/h/d) - 3.5” x 7” x 1.9” / 87 mm x 178 mm x 48 mm Weight - 340 g Interfaces - Bluetooth (optional) + data center
