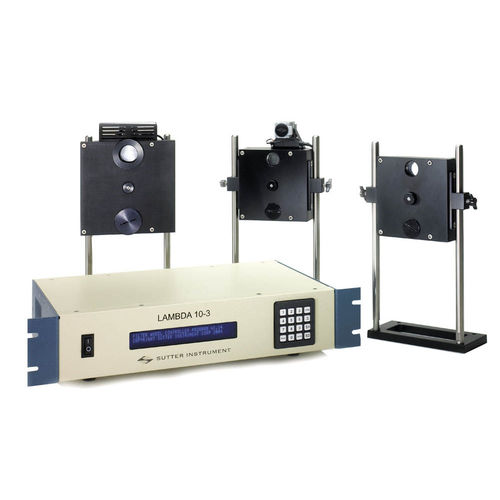

Optical filter wheel changer Lambda 10-3

The Lambda 10-3 is the latest generation of Sutter's high performance filter wheel changers. The controller now offers faster switching times, synchronous independent control of 3 filter wheels and 2 shutters (or 2 filter wheels and 3 shutters), and expanded communication interface options. Recent advances in motor technology allow the Lambda 10-3 to achieve switching times of 40msec between adjacent filters. In addition, the controller commands can now be accessed via USB, serial, parallel, and keypad interfaces. The Lambda 10-3 controls a variety of standard Sutter filter wheels including the popular 10 position 25mm wheel, a lighter 4 position 25mm wheel, a 10 position 32mm wheel, 5 position 50mm wheel, and a compact belt-drive 4 position wheel. The embedded controllers automatically detect the equipment installed and the source of the external commands, so there are no jumper wires or switches to set. There are seven speed settings available to optimize the rate of movement in accordance with the load of the wheel. The Lambda 10-3 can operate up to 40msec switching time with the traditional 25mm filter wheel as well as our newer, high-speed 32mm version. The 4 position wheel (LB10-NWHS4) provides additional speed and can achieve switching times of less than 33msec. Nearly all of our filter wheels employ a direct drive system. This design eliminates problems with belt slippage and backlash, assuring that our wheels are exceptionally robust.
