3D printer extruder FLD-35B
for PPfor PEfor ABS

3D printer extruder
3D printer extruder
3D printer extruder
3D printer extruder
3D printer extruder
3D printer extruder
3D printer extruder
Add to favorites
Compare this product


Characteristics

Applications
for 3D printers
Treated material
for PP, for PE, for ABS, for PC, for PET, for PLA, for EVA, for TPU, for PEEK
Other characteristics
laboratory
Output

15 kg/h
(33.0693 lb/h)

Screw diameter

35 mm
(1.4 in)

Maximum speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 150 rpm
(942 rad.min-1)

Temperature

Min.: 0 °C
(32 °F)

Max.: 480 °C
(896 °F)

Overall length

12,500 mm
(492 in)

Overall width

1,250 mm
(49 in)

Total height

1,800 mm
(71 in)

Weight

1,200 kg
(2,646 lb)

Power

7.5 kW
(10.2 hp)

Description

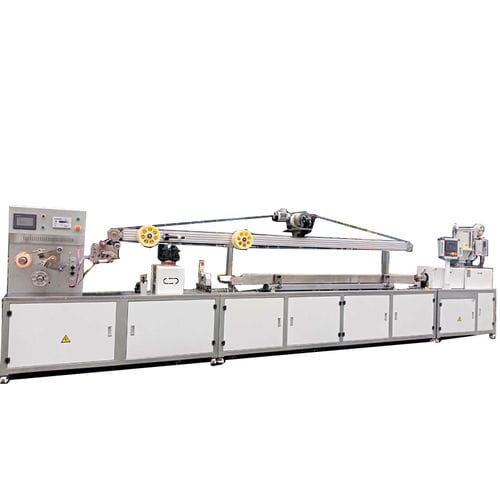

This production line is independently developed by our company, using the latest extrusion molding technology, the purpose is to be used for laboratory testing materials have been investors' initial investment in 3D printing filament. This production line is suitable for most of the plastic raw material (ABS/PLA/PEEK/PP/PE/PC/TPU/PETG...), production of products tolerance of + / - 0.03 mm. The company's machines are sold overseas all the year round, won the majority of foreign customers consistent high praise. Low error printing wire control by small model precision screw; Perfect tolerance:+/-0.03mm, even+/-0.01mm; It can produce the different diameter of filament from 1.75mm-3.00mm; Easy operation: Panel clean control system; Produce different raw material: ABS PLA PA HIPS PET; Low maintain. We did not receive any complaint once the machine is running; We can provide installation services overseas.
