Telescopic conveyor 15030 series
belthydraulichorizontal

telescopic conveyor
telescopic conveyor
telescopic conveyor
telescopic conveyor
telescopic conveyor
telescopic conveyor
telescopic conveyor
Add to favorites
Compare this product


Characteristics

Technology
belt, hydraulic
Form
horizontal, with adjustable slope
Sector
for logistics
Transported product
bag, carton, package, for parcel, for tires
Other characteristics
mobile, height-adjustable, telescopic, extendable, variable speed, loading, unloading
Speed

Max.: 40 m/min

Min.: 5 m/min

Effective width

Max.: 1,000 mm
(39 in)

Min.: 600 mm
(24 in)

Description

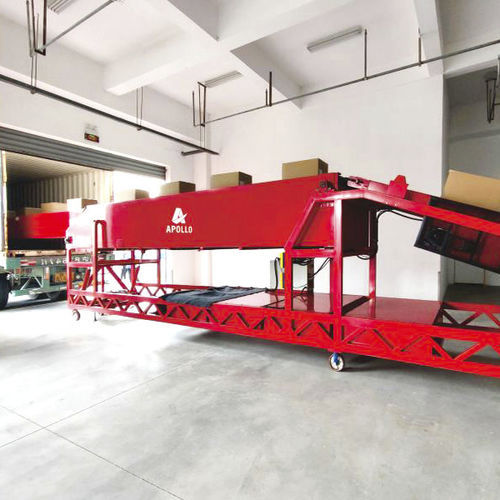

High chassis telescopic belt conveyor is suitable for dockless warehouse. This is a complete movable loading and unloading equipment, by manual movement or equip with motorized movement system. Widely used in E-commerce, Third party logistics, Food, Beverages, Pharmaceuticals, Clothes, Furniteure and FMCG etc. - Suitable for unfixed loading/unloading sites - Machine can move randomly at ground, conveniently change position according to the goods or the position of the vehicle - Extra functions are available like hydraulic up/down, light, counter etc - Mobile type: manual movement, rail traverse movement, motorized movement - Reduce the damage rate of products, guarantee the safety of goods - Operation height conform to ergonomic design, easy to handle goods, reduce the labor intensity of workers - Goods type: carton, bag, parcel, tire, plastic box, barrel etc - Loading capacity: 50kg/m When loading and unloading trucks, telescopic belt conveyor makes a world of difference. This solution extends all the way from the permanent conveyor to the nose of the truck trailer or containers, making the process of getting cargo in and out faster, easier and safer, the flexible solution enables the telescopic conveyor to work anywhere in the plant, realizes loading and unloading anywhere.
