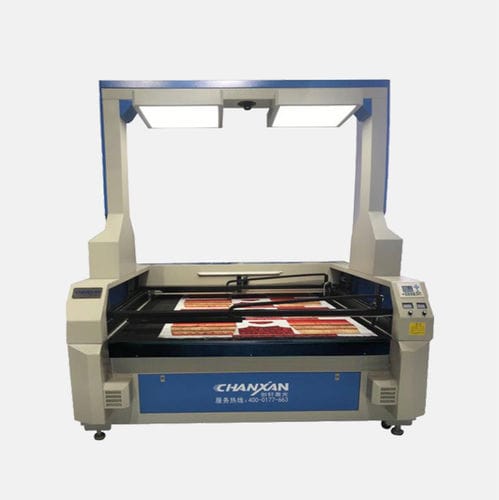

CO2 laser cutting machine CW-1610HFS
for foamfor polyesterfor fabrics

CO2 laser cutting machine
CO2 laser cutting machine
CO2 laser cutting machine
CO2 laser cutting machine
Add to favorites
Compare this product


Characteristics

Technology
CO2 laser
Material
for foam, for polyester, for fabrics, for paper, for fiberglass
Product handled
contour, carpet, for mattresses
Associated function
printing
Applications
for industrial applications, for the automotive industry, for the aerospace industry
Other characteristics
automatic, high-precision, high-speed, with servo-motor, flying
X travel

1,600 mm, 1,800 mm
(62.99 in, 70.87 in)

Y travel

1,000 mm
(39.37 in)

Cutting speed

Min.: 0 mm/s

Max.: 1,200 mm/s

Laser power

150 W, 300 W, 600 W, 800 W

Repeatability

0.03 mm
(0.0012 in)

Acceleration

12 m/s²
(39 ft/s²)

Description

Vision laser cutting machine is ideal for cutting digital printing sublimation textile fabrics of all shapes and sizes. Cameras scan the fabric, detect and recognize printed contour, or pick up on printed registration marks and cut the chosen designs with speed and accuracy. A conveyor and auto-feeder is used to keep cutting continuous, saving time and increasing production speed. The HIGH CCD Laser Cutting Machine is upgraded from the basic belt driven version. The basic belt driven system has its limitation when running with high power laser tube, whereas the Gear & Rack driven version is strong enough to undertake the high power laser tube. The Gear & Rack driven laser cutting machine can be equipped with high power laser tube up to 300W and flying optics to perform with super high acceleration speed and cutting speed. polyester (PES), viscose, cotton, nylon, nonwoven and woven fabrics, synthetic fibers, polypropylene (PP), knitted fabrics, felts, polyamide (PA), glass fiber (or glass fibre, fiberglass, fibreglass), Kevlar, aramid, polyester PET, PTFE, paper, foam, cotton, plastic, etc. Applications 1. Clothing Textiles: technical textiles for clothing applications. 2. Home Textiles: carpets, mattress, sofas, curtains, cushion materials, pillows, floor and wall coverings, textile wallpaper, etc. 3. Industrial Textiles: filtration, air dispersion ducts, etc. 4. Textiles used in automotive and aerospace: aircraft carpets, cat mats, seat covers, seat belts, airbags, etc.
