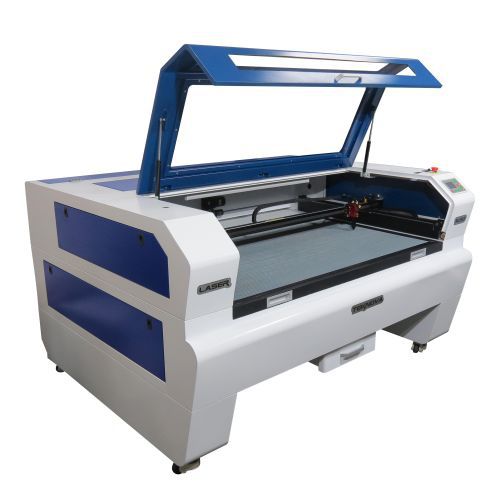

CO2 laser cutting machine CW series
for acrylicsfor woodfor leather

CO2 laser cutting machine
CO2 laser cutting machine
CO2 laser cutting machine
CO2 laser cutting machine
Add to favorites
Compare this product


Characteristics

Technology
CO2 laser
Material
for acrylics, for resins, for wood, for leather
Product handled
sheet
Associated function
engraving
Applications
for industrial applications
Other characteristics
automatic, high-precision, with water cooling
X travel

Max.: 1,800 mm
(70.87 in)

Min.: 900 mm
(35.43 in)

Y travel

Max.: 1,200 mm
(47.24 in)

Min.: 600 mm
(23.62 in)

Laser power

80 W, 100 W, 130 W, 150 W, 300 W

Description

This series of machine structure is stable, many models, to meet a variety of format cutting and engraving. Mainly used in industrial production, the most common applications are acrylic, wood, leather, cloth and other materials. This laser cutting machine especially good for customers who need to mass produce their products. There’re different sizes of laser cutters for your choice. Applicable Materials Cloth,leather, wool, fur, acrylic, plexiglass, wood, plastic, resin,rubber, bamboo product,resin,paper,carton and other non-metal materials. Applicable Industry The machine is suitable for garment,leather, package and printing,advertisement decoration, building upholster, art gift, computer embroidery, paper product, acrylic product, middle density board etc. non-metal sheet precision cutting and other industries. Cast acrylic - Cast acrylic enables high-contrast white engraving and is particularly popular for POS displays or letters. Extruded acrylic - The engraving on laser-engraved, extruded acrylic turns matt grey and is often used for models and interlocking applications. PES film - Plastic films can be laser cut and laser engraved very easily. Foam PE - Foams are good for laser cutting, engraving and marking. Laser cutting creates neatly fused and sealed edges. ABS - With a fiber laser, a large number of commercially used plastics such as polycarbonate, ABS, polyamide and many more can be marked permanently, quickly and in high quality. Polyamide (PA) - Almost all types of plastic such as PA can be marked with a fiber laser permanently and in a high quality.
