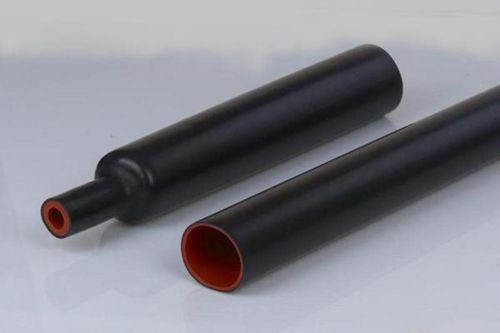

Heat-shrink tubing
insulatingtubularfor cables

Heat-shrink tubing - Suzhou City Wuzhong District Luzhi Mixgin Electronics Factory - insulating / tubular / for cables
Heat-shrink tubing - Suzhou City Wuzhong District Luzhi Mixgin Electronics Factory - insulating / tubular / for cables
Heat-shrink tubing - Suzhou City Wuzhong District Luzhi Mixgin Electronics Factory - insulating / tubular / for cables - image - 2
Heat-shrink tubing - Suzhou City Wuzhong District Luzhi Mixgin Electronics Factory - insulating / tubular / for cables - image - 3
Heat-shrink tubing - Suzhou City Wuzhong District Luzhi Mixgin Electronics Factory - insulating / tubular / for cables - image - 4
Add to favorites
Compare this product


Characteristics

Type
heat-shrinkable, insulating
Structure
tubular
Applications
for cables
Material
polyolefin
Protection level
fire-resistant, waterproof
Other characteristics
bendable, double
Diameter

Max.: 45 mm
(1.8 in)

Min.: 2 mm
(0.1 in)

Temperature

Max.: 125 °C
(257 °F)

Min.: -45 °C
(-49 °F)

Description

PE Dual Wall Heat Shrink Tubing Min. shrink temperature: ≥70℃ Min. full recovery temperature: ≥125℃ Working temperature: -45℃-125℃ Melting temperature of inner layer of adhesive: 70-100℃ Shrink ratio: 2:1 Feature: anti-corrosion, waterproof, anti-leakage The PE Dual Wall Heat Shrink Tubing is made of a soft, flame retardant polyolefin and hot melt adhesive. The outside polyolefin is soft, flame retardant and abrasion resistant. The inside hot melt adhesive features an anti-mechanical strain, strong leak resistance, and waterproof performance. The heat shrink tubing features a great high temperature shrink rate, insulation, corrosion resistance, softness and fire resistance. Application The PE Dual Wall Heat Shrink Tubing is often used in electric wire connections, automobile wire harnesses, wire harnesses, wire and cable branches, metal pipelines and other places that need to be sealed.
