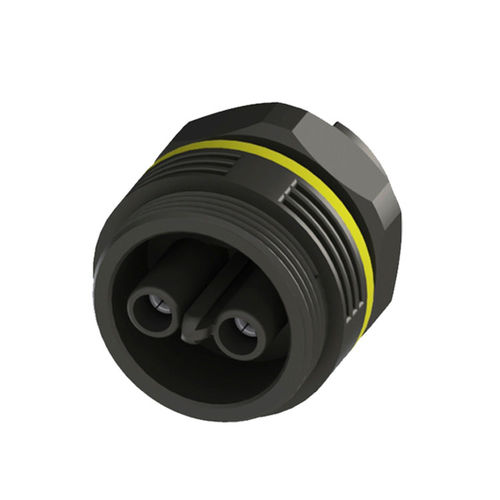

Data connector EP020-2124-00 electrical power supplySocketovermolded
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Format
- Socket, overmolded
- Shape
- straight, circular
- Connection type
- screw, screw-locked, screw coupling
- Size
- M23, M16
- Electrical characteristics
- power, 2-pole, DC power, insulated
- Material
- polyamide, copper, nickel-plated
- Product applications
- transmission, for cables, for street lighting, for engine, for vehicles
- Domain
- for industrial applications, for military applications, for medical applications, for railway applications, indoor/outdoor
- Protection class
- IP68
- Other characteristics
- panel-mount, waterproof, strain relief
- Primary current
17.5 A
- Voltage
450 V
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 85 °C
(185 °F)
Description
EP Series 2 Pin Female Panel Mount Waterproof Connector
Contact Resistance≤10mΩ
Insulation Resistance≥500MΩ
Wire Gauge：0.5~2.5mm²
Connection Method：Screw Clamp
Housing Material：Engineering plastic
Conductor Material：Copper alloy with Nickel plated
Compliant with EN61984, GB/T34989, UL2238
Screw crimped, allows quick and easy wiring on site
Spinning thread locked, firm connection
Certified by TUV, CQC, UL, CE
