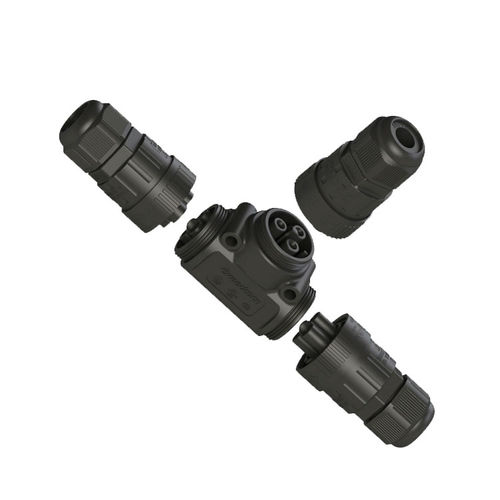

Splitter connector EP-3DDdataelectrical power supplyT type
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Format
- T type
- Shape
- T
- Connection type
- screw-in, screw-locked, screw coupling
- Size
- M23, M16
- Electrical characteristics
- power, 3-pole, insulated, AC, voltage
- Material
- polyamide, copper, nickel-plated
- Product applications
- transmission, for cables, for street lighting, distribution
- Domain
- for industrial applications, indoor/outdoor, for LED lighting
- Protection class
- IP68
- Other characteristics
- waterproof, splitter
- Primary current
17.5 A, 32 A
- Voltage
450 V
- Operating temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
EP Series 3 Poles T Type Current Distributor Connector
Contact Resistance≤10mΩ
Insulation Resistance≥500MΩ
Connection Method：Screw Crimped
Housing Material：Engineering plastic
Conductor Material：Copper alloy with Nickel plated
Compliant with EN61984, GB/T34989, UL2238
Screw crimped, allows quick and easy wiring on site
Spinning thread locked, firm connection
Certified by TUV, CQC, UL, CE
