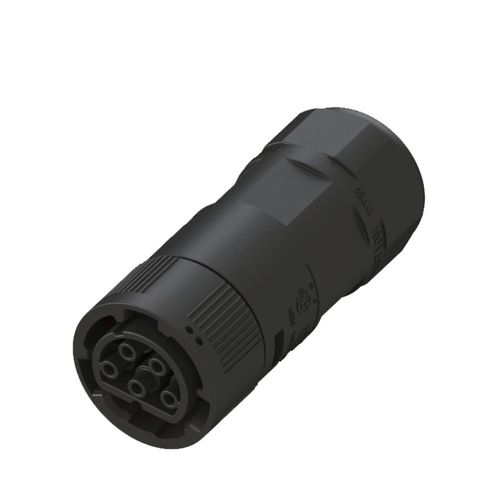

Data connector EN050-2236-00
electrical power supplySocketovermolded

data connector
data connector
data connector
data connector
data connector
Add to favorites
Compare this product


Characteristics

Type
data, electrical power supply
Format
Socket, overmolded
Shape
straight, round
Connection type
screw-in, screw-locked, screw coupling
Size
M23, M16
Electrical characteristics
power, 5-pole, AC, AC voltage
Material
thermoplastic, copper, silver-plated, silicone rubber
Product applications
transmission, for cables, for power supplies, for industrial applications
Domain
for industrial applications, indoor/outdoor, for LED lighting, for lighting applications
Protection class
IP68
Other characteristics
waterproof
Primary current

25 A

Voltage

500 V

Operating temperature

-40 °C, 85 °C
(-40 °F, 185 °F)

Description

EN Series 5 Pin 25A Female Cable End Connector Contact Resistance≤10mΩ Insulation Resistance≥1000MΩ Wire Gauge：2.5~6mm² Connection Method：Screw crimped Housing Material：Engineering plastic Conductor Material：Copper alloy with Nickel plated Compliant with EN61535, CQC3315, UL2238 Higher safety standard, specially designed structure, unlock tools available,better insulation For applications in distributed PV power plant, indoor cabling Certified by TUV, CQC, UL, CE, CSA
