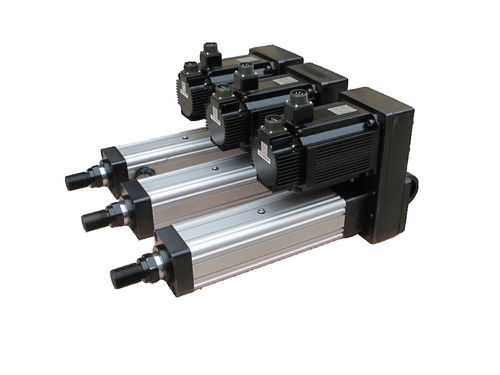

Electric cylinder FDR075 Serieswith piston rodwith servo-motormembrane
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Technology
- with piston rod, with servo-motor, membrane, ball screw
- Configuration
- double-acting
- Material
- steel, aluminum
- Protection class
- dust-proof, waterproof
- Applications
- for lifting applications, security, for robots, for punching tools, for welding applications, for lifting platforms, for heavy handling equipment, for grippers, for agricultural machinery, industrial, for the automotive industry, for construction equipment
- Other characteristics
- flange, long-stroke, compact, low-temperature, with internal stroke limiter, with integrated limit switch, precision, bending, high-efficiency, corrosion-resistant, high-performance, high load capacity, repairable, adjustable-stroke, with integrated displacement encoder, high-speed, high-force, with parallel motor, standard
- Stroke
Min.: 50 mm
(1.969 in)Max.: 1,200 mm
(47.244 in)- Force
Min.: 2,500 N
Max.: 10,000 N
- Torque
Min.: 2.39 Nm
(1.763 ft.lb)Max.: 3.18 Nm
(2.345 ft.lb)- Speed
Min.: 50 mm/s
Max.: 1,000 mm/s
Description
Servo electric cylinder working principle:Servo electric cylinder is a modular product designed by integrating servomotor and lead screw, which converts the rotary motion of servo motor intolinear motion, and at the same time optimizes the advantages of servo motor - precisespeed control, precise rotation control and precision torque control istransformed into precise speed control, precise rotation control and precisethrust control. This is a new revolutionary product for high precision linearmotion series. The best substitute for pneumatic cylinder and hydrauliccylinder.
Application：
Dynamic 3D 4D entertainment facilities
Industrial automation
Game platform
Multiple degrees of freedom Simulation machinery
Precision machinery
Robots
