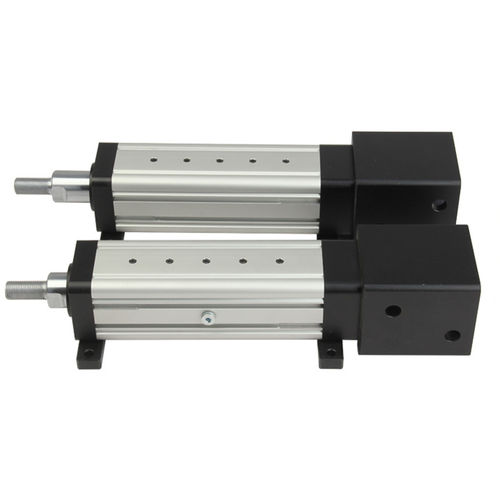

Electric cylinder FDR135 serieswith piston rodwith servo-motorball screw
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Technology
- with piston rod, with servo-motor, ball screw
- Configuration
- double-acting
- Material
- steel, aluminum
- Protection class
- dust-proof, waterproof, robust
- Applications
- test, for lifting applications, linear for mechanical testing, for medical equipment, security, for materials handling, for robots, for washdown applications, brake, for presses, high-temperature, for demanding applications, lift table, for medical applications, for lathes, for punching tools, for welding applications, for lifting platforms, for solar panels, for heavy handling equipment, for agricultural machinery, for lifting, industrial, for the automotive industry, for construction equipment
- Other characteristics
- for heavy loads, compact, precision, long-stroke, with integrated limit switch, swaging, high-efficiency, heat-resistant, high-frequency, anti-corrosion, repairable, high-speed, low-friction, adjustable-stroke, paper machine, pick-and-place, high-tonnage, flange-mounted, with parallel motor, high-force, multi-purpose, high load capacity, flange, bending, high-performance, hole punch, standard
- Stroke
Min.: 50 mm
(1.969 in)Max.: 2,000 mm
(78.74 in)- Force
55 kN
Min.: 3 kN
Max.: 60 kN
- Torque
Min.: 14.3 Nm
(10.547 ft.lb)Max.: 35 Nm
(25.815 ft.lb)- Speed
Min.: 15 mm/s
Max.: 2,080 mm/s
Description
Servo electric cylinder working principle:
Servo electric cylinder is a modular product designed by integrating servo motor and ball screw, which converts the rotary motion of servo motor into linear motion, and at the same time optimizes the advantages of servo motor - precise speed control, precise rotation control and precision torque control is transformed into precise speed control, precise rotation control and precise thrust control. This is a new revolutionary product for high precision linear motion series. The best substitute for pneumatic cylinder and hydraulic cylinder.
Application：
Dynamic 3D 4D entertainment facilities
Game platform
Multiple degrees of freedom Simulation machinery （Flight simulation, car driving simulation）
Precision machinery
Robots
