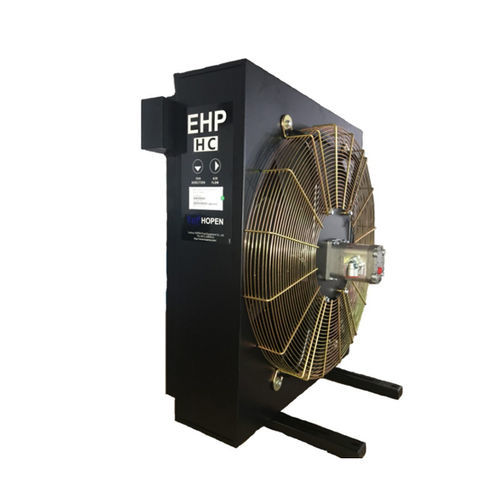

Air cooler EHP-HC seriesoilpressurehydraulic motor
Add to favorites
Compare this product
Characteristics
- Material
- air, oil
- Other characteristics
- pressure, hydraulic motor
- Power
Max.: 160 kW
Min.: 0.1 kW
- Maximum temperature
40 °C, 60 °C
(104 °F, 140 °F)- Flow rate
Max.: 400 l/min
(105.669 us gal/min)Min.: 0 l/min
(0 us gal/min)- Pressure
Max.: 3.2 bar
(46.412 psi)Min.: 0 bar
(0 psi)
Description
EHP-HC cooler drive by Hydraulic motor ,it is mainly used in the cooling of mobile、hydraulic system 、marine drilling platform、wind power generation、coal mine etc. Aluminum cooler ‘s maximum cooling capacity is 160KW at ETD 40℃。 Our software and engineers can help you to choose the correct and economical cooler.
Products Features:
Ac motor cooler’s maximum dynamic operating pressure is 14bar and maximum static operating pressure is 21bar.The cooler is drive by hydraulic motor . The motor size: 8.25CC/rev、10.12CC/rev、13.8CC/rev、 15.52CC/rev、19.12CC/rev、22.87CC/rev 40CC/rev
Pressure drop curve
The cooling capacity curves are base on ETD 40℃.For example，the cooler‘s inlet oil temperature is 60℃，the air temperature is 20℃，the ETD is 40℃。
