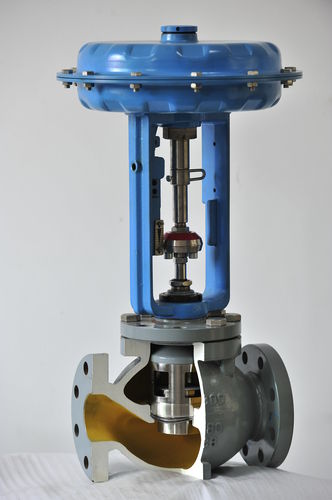

Regulating valve 85001globepneumaticelectric
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- pneumatic, electric
- Function
- for control, shut-off, regulating
- Media
- for water, for oil, for chemicals
- Body
- flange, stainless steel, carbon steel
- Applications
- for water, for industrial applications, industrial, for the chemical industry, liquids, pump, powder, for HVAC installations, powder, for gas stations, OEM
- Fluid specification
- for aggressive media, for corrosive fluids, for fluids with lubricating properties, for abrasive fluids, for powders
- Other characteristics
- ISO, ANSI, DIN, high-pressure, high-temperature, low-pressure, with operating handle, low-noise
- DN
Max.: 32 in
Min.: 3 in
- Temperature
Max.: 500 °C
(932 °F)Min.: -46 °C
(-51 °F)
Description
Consisting of control and quick-acting shut-off valve, actuator, pilot valve, and strainer Suitable for gases
Special features Consisting of globe valve and actuator Low-noise valve plug Pressure balancing to handle large pressure drops Additional stem guiding in the bottom body flange
Strainer Options Welding or welding-neck ends，
Flow divider or AC-trim for noise reduction Insulating section or bellows seal，
Heating jacket，
Perforated plug。
Consistently Modular Design for the Widest Variety of Applications
- One body three trims (Plug with threaded-in seat, Plug with clamped
-in seat, Cage) replaceable in the field - Better availability and shorter delivery times
- Easier installation, start-up and maintenance
- Easier management of spare parts stocks
- At least 10 % higher flow coefficient for each valve size
- Option of fastening the packing from the outside
- Rounded edges compliant with ISO 12944
- Spring-loaded PTFE packing with packing gland;
tightness class BH CC2 and CH CC3 up to 250 °C Typical fields of application
- Oil and gas - Chemicals and petrochemicals Power generation
