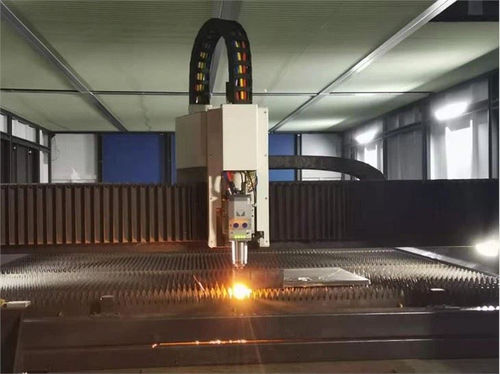

Fiber laser cutting machine LH-8025

for metalsheet metalsheet

Fiber laser cutting machine 8025- LH8025 adopts latest advanced third generation gantry flying optical structure in fiber industry. The machine frame welded by high strength steel was eliminated stress by heat temperature treatment to realize the machine intensity, rigidity and servo transmission matched perfect. After thickening machine tool, it can bear supper higher laser power over 10kw to 30kw. Even the metal sheet with 50mm or even thicker. Specialized fiber cutting head German PRECITEC specific fiber cutting well suited for high power laser source ( >10kw) realizes the function of non-inductive piercing, smart cutting, high-speed frog jump. Ultra-small taper cutting, and bright edge cutting-shining cutting finish. Completely sealed structure for optical pats inside cutting head avoids dust contamination to reduce lens changes and improve cutting stability, which is also easy to make maintenance. Operate panel Equipped with German LTI CNC control system after secondary development and application, it can achieve a variety of laser-specific functions, and graphical operating interface is more simple and convenient.
