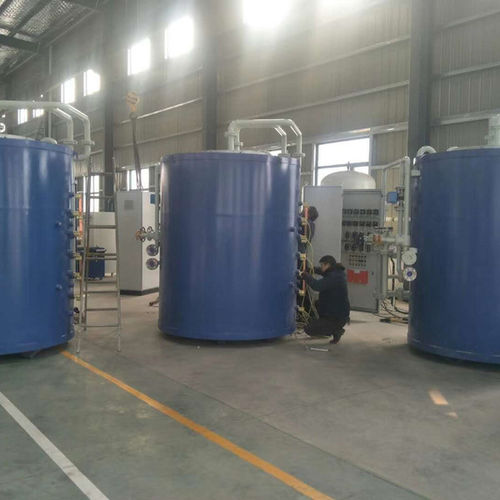

Ammonia cracker

Ammonia Cracker Decomposition gas volume：1～1000Nm3/h Dew point：≤－10℃ Residual ammonia——≤0.1% Description: Cracking of ammonia is one of the most economical way for one-site generation of hydrogen gas for industrial purposes. How Ammonia Cracker Works 2NH3 ----- 3H2 + N2 The ammonia decomposition hydrogen production unit uses liquid ammonia as the raw material, and after gasification, it is heated and decomposed under the action of a catalyst to produce a mixed gas containing 75% hydrogen and 25% nitrogen. The pressure swing adsorption method can further produce pure hydrogen with a purity of 99.999%. Features ● The principle is simple, the structure is compact, the area is small, and the operation is simple; ● Low investment, low energy consumption and low operating cost; ● Wide range of applications, meeting most of the needs of hydrogen use; ● Optimized design of furnace body, furnace and heating wire for core components, and three-year warranty under normal working conditions; Specifications ● Pressure——~0.5bar ● Dew point——≤－10℃ Product decomposition gas: ● Dew point——≤－10℃ ● Residual ammonia——≤0.1% ● Decomposition gas volume——1～1000Nm3/h
