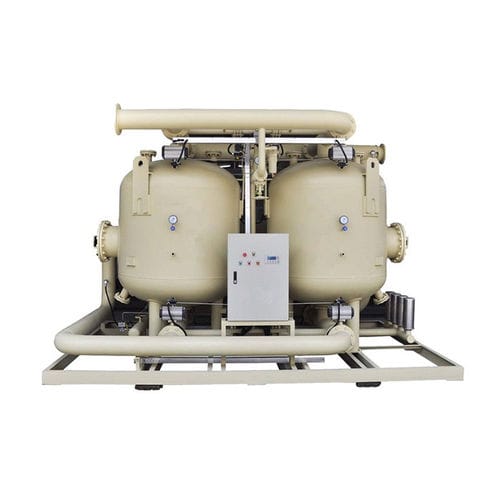

Heat-of-compression compressed air dryer

by adsorption with heatair-cooledhigh-temperature

Compression heat zero gas consumption adsorption dryer Air inlet temperature: 120-200℃ Inlet pressure: 0.7-1.0Mpa Air dew point: -40℃ Description: Compression heat zero gas consumption adsorption dryer is the most energy-saving adsorption dryer. Working Principle Compression heat zero gas consumption adsorption dryer uses the high temperature heat energy of the air compressor exhaust to perform deep desorption and regeneration of the adsorbent. The external electric heater is eliminated. There is no regeneration air consumption during heating. High temperature compressed air passes through during cooling. After the secondary cooler is cooled, the adsorbent is cooled again, so that the adsorbent has the adsorption conditions, no compressed gas is discharged during operation, and it is the most energy-saving adsorption dryer. Standard technical parameters: 1. Air inlet temperature: 120-200℃ 2. Inlet pressure: 0.7-1.0Mpa 3. Air dew point: -40℃ 4. Air consumption for regeneration: 0% 5. Ambient temperature: ≤45℃ 6. Cooling water temperature 0-32℃ 7. Cooling water pressure: 0.2-0.55Mpa 8. Regular 8-hour cycle 9. Installation method: indoor, no foundation, leveling of the concrete floor, reserved maintenance operation space 10. Adsorbent: activated alumina, molecular sieve 11. Power supply: 220-1PH-50HZ 12. Users can optionally configure customized products, and consult our technical service department for detailed technical parameters Design Features: 1.Pure logic control, friendly man-machine interface, automatic continuous display of double tower working conditions
