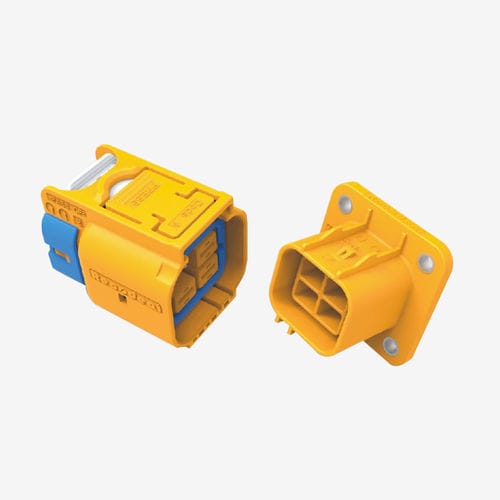

Electrical power supply connector REL1 lockingcurrentvoltage
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Connection type
- locking
- Electrical characteristics
- current, voltage
- Material
- plastic
- Protection class
- IP68
- Primary current
16 A, 25 A, 40 A
- Voltage
1,000 V
- Operating temperature
Max.: 140 °C
(284 °F)Min.: -40 °C
(-40 °F)
Description
● 3 core
● Plastic shell
● With secondary locking, delayed unlocking function
● Anti-mistouch design (IPXXB)
● High protection level: IP6K9K, IP68, etc.
● 4 kinds of anti-misinsertion key positions
● Wire diameter range: 2.5mm²--6mm²
● Integrated interlock function without shielding
● Mainly used for OBC, PDU and other equipment
● Shield: optional
● High voltage interlock: optional
