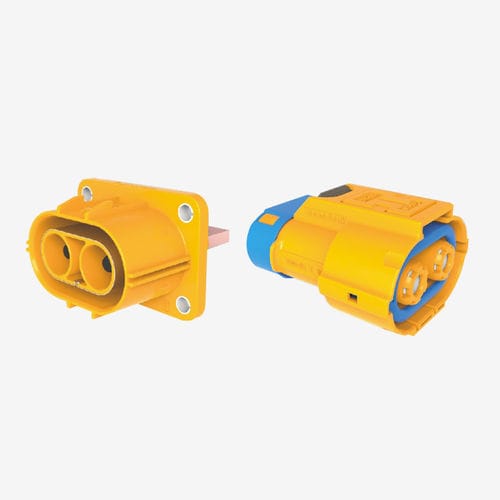

Electrical power supply connector REN1 lockingshieldedhigh-voltage
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Connection type
- locking
- Electrical characteristics
- shielded, high-voltage, high-current
- Material
- plastic
- Product applications
- for battery
- Protection class
- IP68
- Primary current
80 A, 125 A
- Voltage
1,000 V
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 140 °C
(284 °F)
Description
● 2 core
● Plastic shell
● With secondary locking, delayed locking structure
● Anti-mistouch design (IPXXB)
● High protection level: IP6K9K, IP68, etc.
● 4 kinds of anti-misinsertion key positions
● Wire diameter range: 16mm²--25mm²
● Integrated shielding interlock function
● Mainly used for battery packs, all-in-one, PDU and other equipment
● Shield: optional
● High voltage interlock: optional
