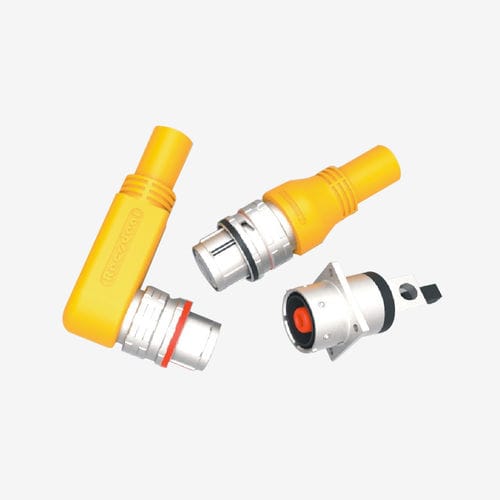

Metal connector RQAII electrical power supplypush-pulllocking
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Connection type
- push-pull, locking
- Electrical characteristics
- shielded, high-current, high-voltage
- Material
- metal
- Product applications
- for battery
- Protection class
- IP68
- Primary current
300 A, 350 A, 400 A
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 140 °C
(284 °F)
Description
● Single core
● Metal shell
● Handle locking structure
● Anti-mistouch design (IPXXB)
● High protection level: IP6K9K, IP68, etc.
● 2 kinds of anti-misinsertion key positions
● Wire diameter range: 95mm²--135mm²
● Integrated shielding interlock function
● Socket can integrate temperature probe function
● Mainly used for battery packs, MCU, PDU and other equipment
● Shield: optional
● High voltage interlock: no
