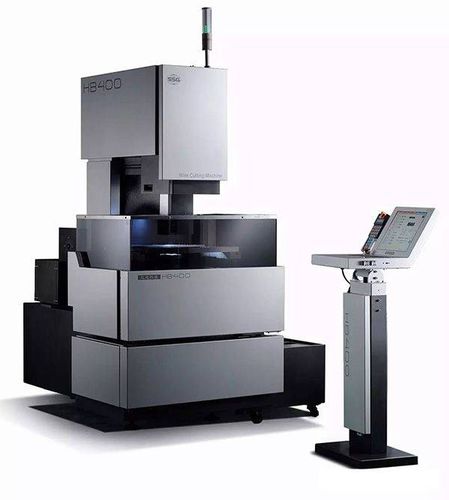

Wire EDM HB400L

CNC

*Linear motor is the "maglev" in machine tool. Because there is no mechanical contact, high responsiveness can be achieved and the ball-screw backlash can be eliminated,the accuracy can be maintained for a very long time. *Linear motor driven HB400L wire cutting machine tool, five-axis full CNC, performance upgrade again *Full closed loop drive of linear motor (X, Y axis) *Z axis numerical control (X, Y, U, V, Z five-axis full CNC control) is realized for the first time. *Original non-electrolytic power supply technology *Best Roughness Finish: Ra0.6μm * Max.Cutting speed 300㎜²/min Specifications: - Machine body: Worktable stroke(X,Y): 400*300mm Wire Speed: 1.18-11.8m/s Machine weight: 2260/2560㎏ Machine Dimension(L*W) : 2020*1700mm Max.workpiece height: 300mm Max. Cutting Angle: 20º/100mm Worktable size: 580*460mm Max.workpiece weight: 500㎏ - Water tank: Filter accuracy: 0.01mm Capacity: 130L Working Methode: Filtration System - Pulse Power: Max cutting speed: ≥300㎜²/min Best Surface Finish: Ra≤0.6μm Max. Cutting Currrent : 12A - CNC : Hardware Configurations: Linear Motor, Full closed-loop and Schneider Inverter Data Port：USB, LAN Programming Code: ISO code Axis Numbers：5-axis and 4 axis simultaneous control, pitch compensation realized.
