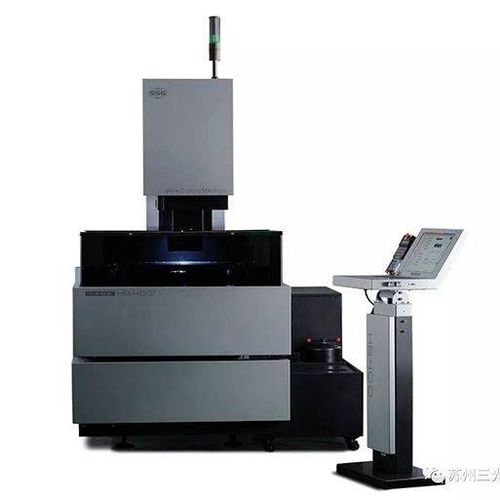

Wire-cut EDM HB800

CNC

A new generation of the molybdenum wire cut machine of HB800，perfect integrated design and minimized workshop space support you to realize the maxium production value. Fully meet the latest National Standard JB/T11999.1-2014） Challenge the limit of molybdenum wire cut machine and achieve the peak performance ※ Best Surface Finish: Ra<0.6μm ※ Max. Cutting Speed : 300mm²/min ※ Original non-Electrolytic Power supply Innovative Architechure Four-axis AC servo with four-axis ball screw and linear guide rail, bringing unprecedented accuracy assurance. Independent layout X axis and Y axis independent layout, UV shaft truss structure to ensure high accuracy. The configuration of high quality castings and reinforcement can inhibit the deformation of the bed. Machine body Worktable stroke(X,Y): 800mm*600mm Wire Speed: 1.18-11.8m/s Machine weight: 3710㎏/4000㎏ Machine Dimmension(L*W): 2585mm*2535mm Max.workpiece height: 500mm Max. Cutting Angle: 20º/100mm Worktable size: 1710mm*935mm Max.workpiece weight: 2000㎏ Water tank Filter accuracy: 0.01mm Capacity: 130L Working Methode: Filtration System Pulse Power Max cutting speed: ≥300㎜²/min Best Surface Finish: Ra≤0.6μm Max. Cutting Currrent: 12A
