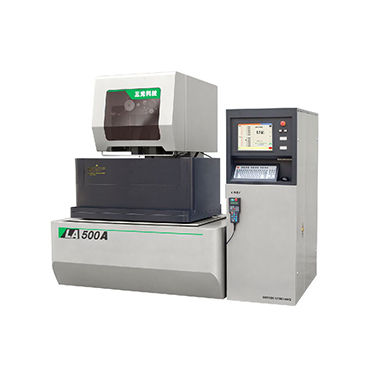

Wire-cut EDM LA500A

Wire-cut EDM - LA500A - Suzhou Sanguang Science&Techology Co,Ltd
Wire-cut EDM - LA500A - Suzhou Sanguang Science&Techology Co,Ltd
Add to favorites
Compare this product


Characteristics

Type
wire-cut
X travel

500 mm
(19.69 in)

Y travel

350 mm
(13.78 in)

Description

Product Description: 1.Close-loop control Imported Linear Scale with THK Ball Screw, which realizes long-term accuraccy guarante. 2.LRT1 Intelligent Pulse Power Supply LRT1 not only achieves high roughness finish,but also enures high productivety and high efficiency. 3.Easy to use Using ergonomic design of the operation panel and interface,based on Windows XP, Touching Screen,Easy to use and learn. Configurations: Linear Scale imported and Close-loop system THK Guide Way and Ball Screw Grundfos pumps 5 Axis AC servo system Inverter imported Windows XP Touching Screen and Mouse Specifications Worktable Dimension(L×W) : 745×510mm Worktable Stroke(X×Y) : 500×350mm Z Stroke : 270mm Max. workpiece height : 260mm/180mm(Submerge) Max.workpiece weight : 700Kg/480Kg(Submerge) Max.cutting angle/height : ±15°/100mm Max.cutting speed : ≥300mm2/min Best Roughness Finish : Ra≤0.4 µm Machining Methode : Submerge/ Flushing Wire Diameter range : 0.15~0.3mm Machine dimension(L×W) : 2700×2500mm Machine Weight : 2700Kg
