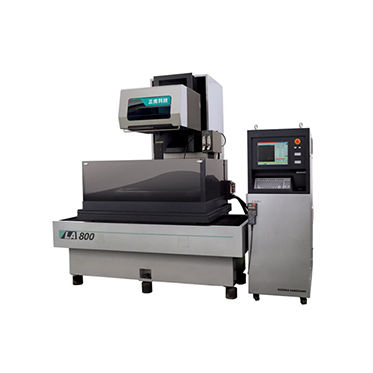

Wire-cut EDM LA800

Product Description： 1.Close-loop control Imported Linear Scale with THK Ball Screw, which realizes long-term accuraccy guarante. 2.LRT1 Intelligent Pulse Power Supply LRT1 not only achieves high roughness finish,but also enures high productivety and high efficiency. 3.Easy to use Using ergonomic design of the operation panel and interface,based on Windows XP, Touching Screen,Easy to use and learn. Configurations： Linear Scale imported and Close-loop system THK Guide Way and Ball Screw Grundfos pumps 5 Axis AC servo system Inverter imported Windows XP Touching Screen and Mouse Specifications Worktable dimension（L×W） : 1120×820mm Worktable Stroke（X×Y） : 800×630mm Z axis Stroke : 360mm Max. workpiece height : 350mm Max. workpiece weight : 1200Kg Max. cutting angle/height : ±20°/100mm Max. cutting speed : ≥300mm2/min Max. cutting current : 25 A Best Roughness Finish : Ra≤0.4 µm Machining method : Flushing Wire Diameter range : 0.15 ～0.3 mm Machine dimension（L ×W） : 3450×3520 mm Machine weight : 5600Kg
