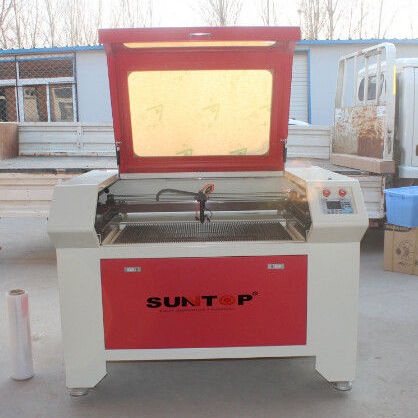

Acrylic cutting machine ST-6090-60
CO2 laserfor rubberfor wood

acrylic cutting machine
acrylic cutting machine
acrylic cutting machine
acrylic cutting machine
acrylic cutting machine
acrylic cutting machine
Add to favorites
Compare this product


Characteristics

Technology
CO2 laser
Material
for rubber, for acrylics, for wood, for leather, for marble, for glass, for ceramics, for paper
Associated function
engraving
Phase
three-phase
X travel

600 mm
(23.62 in)

Y travel

900 mm
(35.43 in)

Cutting speed

1,500 mm/s

Laser power

60 W

Description

1. Machine's general introductions ST-6090-60 is an affordable, entry level laser cutting machine. Machine went through a strict quality control process. Advanced and mature DSP control system, which has the function of "power off memory" and "automatic standby model" Laser tube - fine laser beam, good effect for cutting & engraving . 3 phase stepper motor and driver, work with high efficiency, energy saving, good performance HIWIN linear square guide, work stable & high precision material can be delivered unlimited from front to back. Aluminium flat & Strip working table, greatly increased machine values Adjustable table , material can reach 39 cm thick. Red laser pointer for easy job set up 2. Application materials Acrylic, plexiglass, PMMA, wood, plywood, MDF, marble, paper, glass, cloth, leather, rubber, cork etc, non-metal material engrave or cut .
