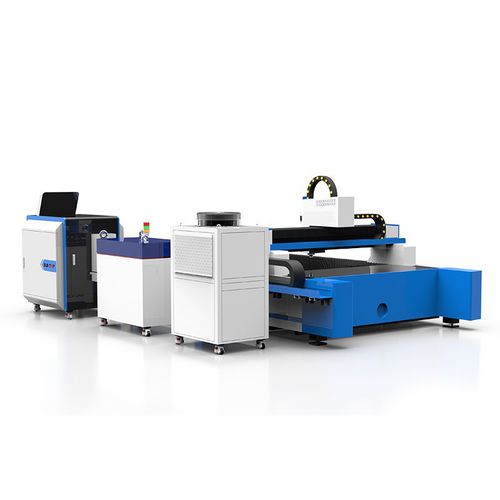

Fiber laser cutting machine ST- FC4020-1500R

for steelfor stainless steelfor aluminum

1. Machine general introduction QL-FC3015 1200W fiber laser cutter is achieved by powerful laser focused on object to cause instant melting and evaporation, with original fiber laser source RAYCUS, Automatic cutting is controlled by digitalized mechanic system, this machine has condensed the technologies of laser, digital, and precise mechanics. Machine can cut carbon steel thickness up to 14 mm, but the price much cheaper than the other kinds of fiber laser source, so this kinds of fiber laser cutting with high cost performance. This machine's other key optic parts are imported from Germany or USA , it’s the China’s price, but European quality, use the gantry working table and the whole steel welding structure which make the machine very stable movement and almost no distortion. . Laser cutting head can be adjusted through the Z axis; travelling area from 0-100mm, the laser cutting head has the automatic tracking functions which can agree with the metal wave surface. 2. Machine main features: 2.1. The machine uses a moving gantry structure, imported high-precision screw and linear guide, smooth transmission, high precision , the X, Y, Z axes are imported from Japan servo motor, high-precision, high- speed, high-torque, high inertia, stable performance and durable. Ensure the machine's high speed and acceleration.
