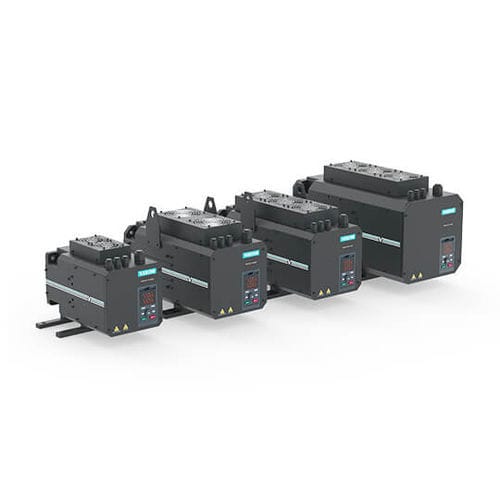

Three-phase servo-drive EHS100 series
synchronousPWMasynchronous

Three-phase servo-drive - EHS100 series - SUZHOU VEICHI Electric Co., Ltd. - synchronous / PWM / asynchronous
Three-phase servo-drive - EHS100 series - SUZHOU VEICHI Electric Co., Ltd. - synchronous / PWM / asynchronous
Three-phase servo-drive - EHS100 series - SUZHOU VEICHI Electric Co., Ltd. - synchronous / PWM / asynchronous - image - 2
Three-phase servo-drive - EHS100 series - SUZHOU VEICHI Electric Co., Ltd. - synchronous / PWM / asynchronous - image - 3
Three-phase servo-drive - EHS100 series - SUZHOU VEICHI Electric Co., Ltd. - synchronous / PWM / asynchronous - image - 4
Three-phase servo-drive - EHS100 series - SUZHOU VEICHI Electric Co., Ltd. - synchronous / PWM / asynchronous - image - 5
Three-phase servo-drive - EHS100 series - SUZHOU VEICHI Electric Co., Ltd. - synchronous / PWM / asynchronous - image - 6
Add to favorites
Compare this product


Characteristics

AC/DC
three-phase
Type
synchronous, PWM, asynchronous, four-quadrant, vector control, three-phase stepper
Output signal
EtherCAT, Modbus, CAN bus, PROFIBUS
Product applications
control, 3D motion, for servo motors, for industrial applications, industrial, for production machines, for packaging machines, variable speed drive, loop, cutting, for cutting applications, for electric actuators, for conveyor, for injection molding machines, for electronics, CAN bus, air duct, motor, for food industry machinery, air conditioning
Voltage
380 V
Protection class
IP20, IP56
Other characteristics
programmable, compact, high-performance, multi-function, torque control, with DC power supply, CANopen, high-voltage, high-power, integrated, with speed control, modular, with PID controller, air-cooled, water-cooled, high-frequency, with integrated PLC, vector-controlled, four-quadrant, for servo motors, high-power
Intensity

Min.: 3.5 A

Max.: 67 A

Power

Min.: 4,400 W
(15,013.42 BTU/h)

Max.: 35,000 W
(119,424.9 BTU/h)

Output power

Min.: 2 kW
(2.71924 hp)

Max.: 69.6 kW
(94.62963 hp)

Description

- Integrated control, power, brake function; - No need for self-learning, power on; - Designed for mechanical high frequency vibration; - Double independent air duct, IP56 fan; EHS100 Integrated Servo Overview EHS100 is a new generation integrated servo product that combines control, power, and brakes in one. Simplify installation lines, reduce bridges, wire slots, connectors, and line nodes, reduce equipment complexity, increase space utilization, and increase installation efficiency by more than 5 times. 1. Integration: Integrated control, power, and brake functions. 2. No debugging: No need for self-learning, just use it when power on. 3. Anti-vibration: designed for mechanical high-frequency vibration. 4. High protection: double independent air ducts, IP56 fan. The future has come A new generation of integrated servo products, combining control, power, and braking into one. Simplify installation lines, reduce bridges, wire slots, connectors, and line nodes, reduce equipment complexity, increase space utilization, and increase installation efficiency by more than 5 times. Subversion begins 1. Subvert the traditional installation method: There is no need to control the electric cabinet, and the original motor installation method is not changed. It saves space while improving production efficiency, reducing the probability of production errors and the cost of error correction. 2. Less radiation and distributed capacitance: Internal wiring helps improve the EMC electromagnetic compatibility of the system, greatly reduces interference, and ensures the stable operation of the system.

VIDEO
