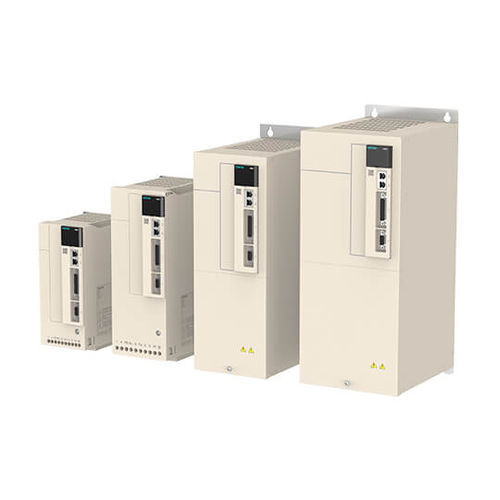

Three-phase servo-drive SD500 series

synchronousPWMasynchronous

- Accurate speed, position control, positioning accuracy of ±1 pulse - Powerful self-learning function - Multi-stage quasi-stop position, rigid tapping error ±2% - One-point setting at zero position, easy to operate SD500 Spindle servo drive Overview SD500 is a new generation of high-performance spindle servo drive. The standard dual-encoder interface can realize the full-closed-loop servo control of the spindle motor. It integrates speed control, position control and torque control. Precise position control and enhancement of product environmental adaptability and customized and industrialized design provide excellent drive solutions for machine tool spindles. 1. Dual encoder: dual encoder interface, full closed-loop vector control. 2. Quick response: strong load response capability. 3. Parameter optimization: self-tuning of loop parameters. 4. Wide range: large low-frequency torque, wide speed range. 5. Strong stability: accurate positioning and simple debugging. 6. Support the open-loop and closed-loop: Integrate synchronous and asynchronous drive. High-performance spindle servo drive SD500 is a new generation of high-performance spindle servo driver developed by VEICHI. It is equipped with dual-encoder interfaces as standard, which can realize full-closed-loop servo control of the spindle motor. It integrates speed control, position control, and torque control; it strengthens the environmental adaptability, as well as customized and industrialized design, to provide excellent drive solutions for machine tool spindles.
