- High voltage accuracy±0.03% of F.S., high current accuracy±0.03% of F.S.;
- Multi-current range 300A/200A/50A ±0.03%;
- Fast current response < 3ms;
- Discharge energy recovery efficiency reaching 80%;
- High-speed data recording time 10ms;
- Channel parallel up to 2400A;
- Multiple safety protection for cells;
- Integrated multifunction logger with thermostat/humidity chamber;
- Qualified for IEC & GB/T standards;

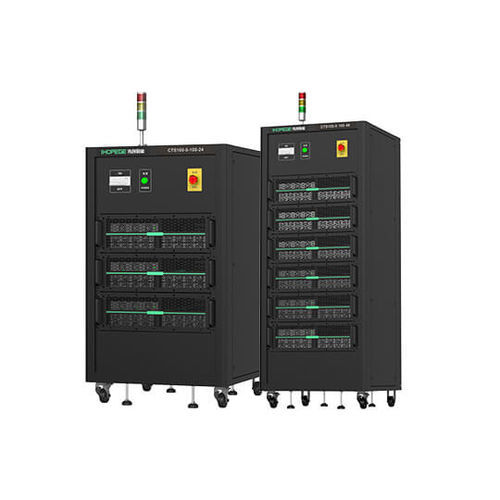

CTS100 Cell Test Equipment Overview
CTS100 is a professional charge/discharge test equipment developed for high current/high power performance testing. It is suitable for performance testing and evaluation of high-capacity Li-ion cells and Li-ion capacitors, cycle life verification, and product model selection.
Adopted with the latest technique, CTS 100 features high energy conversion efficiency, high voltage and current accuracy, fast current dynamic response, multi-current range automatic staging, high power density, and high safety factor in actual use. The CTS100 is characterized by high energy conversion efficiency, high voltage and current accuracy, fast current dynamic response, automatic multi-current range current staging, high power density, and high safety factor.
High current cycle life test requires high energy conversion efficiency of the test equipment, thus CTS100 series products are designed with lower energy cost and at the same time less heat generation so that the internal system including the elements for accuracy control can work under a relatively low temperature to effectively avoid temperature excursion of key elements’ parameters and short-ened service life caused by temperature variation.
