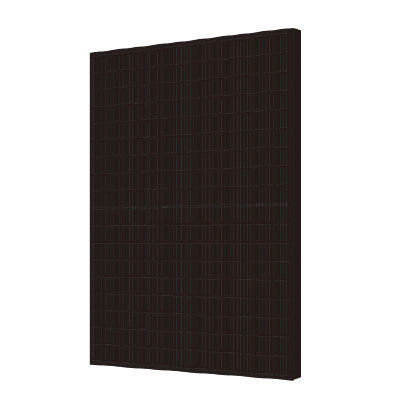

Monocrystalline silicon solar panel VCS-108H P series
CETUVIEC

Monocrystalline silicon solar panel - VCS-108H P series - SUZHOU VEICHI Electric Co., Ltd. - CE / TUV / IEC

Add to favorites

Compare this product

Go to the SUZHOU VEICHI Electric Co., Ltd. website for more information

Characteristics

Technology

monocrystalline silicon

Certifications

CE, IEC, TUV

Peak power (Wp)

Min.: 294 W

Max.: 415 W

Open-circuit voltage

Min.: 34.62 V

Max.: 37.45 V

Short circuit current

Min.: 10.89 A

Max.: 14.02 A

Max power voltage

Min.: 28.9 V

Max.: 31.6 V

Max power current

Min.: 10.18 A

Max.: 13.13 A

Module efficiency

Min.: 19.97 %

Max.: 21.25 %

Lenght

1,722 mm
(68 in)

Width

1,134 mm
(45 in)

Height

30 mm
(1 in)

Weight

21 kg
(46.3 lb)

Description

- Maximum Power Output: 415W. - Maximum Module Efficiency: 22%. - Power Output Guarantee: 0~+5W. - N-Type. - TÜV and CE Certification. VCS-108H 390-415W Series Monocrystalline Monofacial Solar Panel Overview These monocrystalline msolar panels are known for their high energy conversion efficiency, VCS-108H monocrystalline solar panel typically ranging from 390 to 415 watts. This means they can generate a substantial amount of electricity from sunlight, making them suitable for various applications. Features of VCS-108H 390-415W Series Monocrystalline Monofacial Solar Panel 1. Ideal choice for large scale ground installationI. 2. Selected encapsulating material and stringent production process control ensure the product is highly PID resistant and snail trails free. 3. Special cutting and soldering technology leads to low hotspot risk. 4. Sand blowing test, salt mist test and ammonia test passed to endure harsh environments. 5. Optimized system performance due to module level current sorting. 6. Highly transparent self-cleaning glass brings additional yield and easy maintenance. I-V Curve at Different Temperature (4200w) I-V/P-V Curve at Different Irradiation (4200w) Deliver Reliable Performance Over Time • Manufacturer of crystalline silicon photovoltaic modules. • Fully automatic facility and world-class technology. • Rigorous quality control to meet the highest standard: ISO9001:2015, ISO14001: 2015 and OHSAS: 18001 2007. • Tested for harsh environments (salt mist, ammonia corrosion and sand blowing test: IEC 61701, IEC 62716, DIN EN 60068-2- 68). • Long term reliability tests. 2×100% EL inspection ensuring defect-free modules.
