Water pump SIVB seriessolar-powerednormal primingperipheral
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- solar-powered
- Priming
- normal priming
- Technology
- peripheral
- Mobility
- stationary
- Domain
- industrial, for water treatment
- Applications
- transfer, irrigation, treatment
- Material
- cast iron, brass, copper
- Fluid specification
- for low-viscosity fluids
- Voltage
- 24 V, 48 V
- Protection level
- IP55
- Other characteristics
- compact, with electronic control, brushless
- Flow
2 m³/h, 3 m³/h
(70.62933 ft³/h, 105.944 ft³/h)- Head
Min.: 25 m
(82'00" )Max.: 65 m
(213'03" )- Power
Min.: 210 W
(0.29 hp)Max.: 750 W
(1.02 hp)- Fluid temperature
Min.: -15 °C
(5 °F)Max.: 60 °C
(140 °F)
Description
• 100% copper winding
• Efficient PMSM brushless motor (PMSM: Permanent Magnet Synchronous Motor)
• Efficient synchronous motor
• Cast iron pump body with e-coating treatment
• Brass impeller

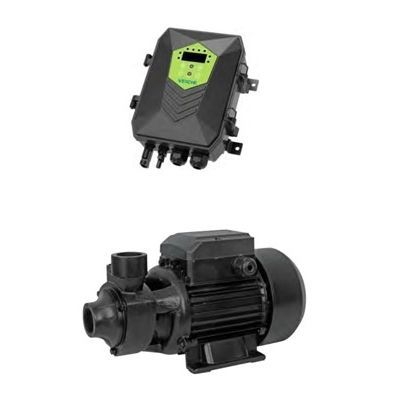

SIVB DC Solar Peripheral Water Pump Overview
MPPT DC Controller
Protection class: IP55
Ambient temperature:-15~60℃MPPT
Working conditions & fault code on LED screen
Auto Start & Stop
Soft start & frequency conversion
Industrial Applications for SIVB DC Solar Peripheral Water Pump
• Transfer clean water or other water-like liquids with similar chemical properties
• Farm irrigation and domestic watering in areas without electricity
• Off-grid solar irrigation system
