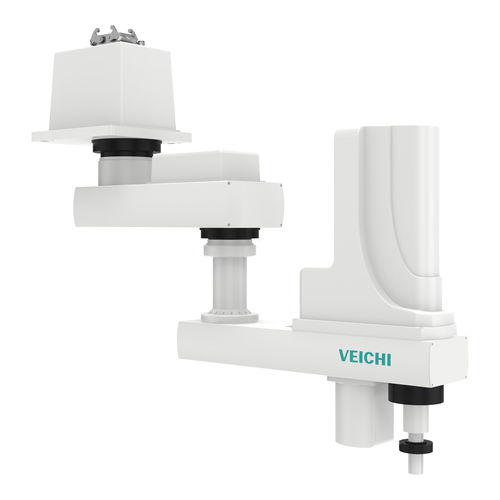

SCARA robot VCG100-700
4-axisfor weldingfor press automation

SCARA robot
SCARA robot
Add to favorites
Compare this product


Characteristics

Type
SCARA
Number of axes
4-axis
Function
for welding, for press automation
Application domain
applications
Protection level
IP40
Payload

10 kg
(22.046 lb)

Reach

700 mm
(27.56 in)

Repeatability

0.01 mm, 0.02 mm
(0.0004 in, 0.0008 in)

Speed

1,000 mm/s, 13,816 mm/s

Operating temperature

Max.: 45 °C
(113 °F)

Min.: 0 °C
(32 °F)

Noise level

85 dB

Weight

43 kg
(94.8 lb)

Description

VCG100-700 series scara robot overview: VEICHI VCG100-700 series scara robot is a high-performance industrial automation robot. Designed to enhance production efficiency and flexibility, this robot is ideal for electronic assembly, small parts handling, and other automated applications requiring accurate control. Product features: Payload: Capable of handling a payload of up to 10kg, suitable for a variety of light material handling and assembly tasks. Arm Reach: Features a 700mm reach, ensuring precise operation within confined spaces.
