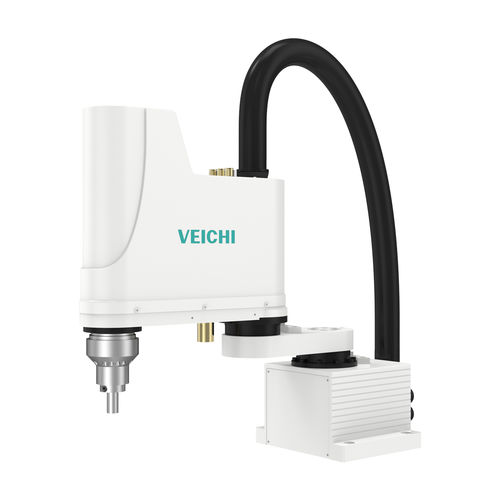

SCARA robot VCH030-400-500-6004-axisfor weldingfor press automation
Add to favorites
Compare this product
Characteristics
- Type
- SCARA
- Number of axes
- 4-axis
- Function
- for welding, for press automation
- Application domain
- applications
- Protection level
- IP40
- Payload
Max.: 5 kg
(11.023 lb)Min.: 3 kg
(6.614 lb)- Reach
Max.: 600 mm
(23.62 in)Min.: 400 mm
(15.75 in)- Repeatability
0.01 mm
(0.0004 in)- Speed
6,280 mm/s, 7,065 mm/s, 7,850 mm/s
- Operating temperature
Max.: 45 °C
(113 °F)Min.: 0 °C
(32 °F)- Noise level
85 dB
- Weight
Max.: 19 kg
(41.9 lb)Min.: 16.8 kg
(37 lb)
Description
VCH030-400-500-600 series scara robot overview：
VEICHI VCG100-700 series scara robot is a high-performance industrial automation robot. Designed to enhance production efficiency and flexibility, this robot is ideal for electronic assembly, small parts handling, and other automated applications requiring accurate control.
Product features：
Payload: Capable of handling a payload of up to 3kg, suitable for a variety of light material handling and assembly tasks.
Arm Reach: Features a 400/500/600mm reach, ensuring precise operation within confined spaces.
