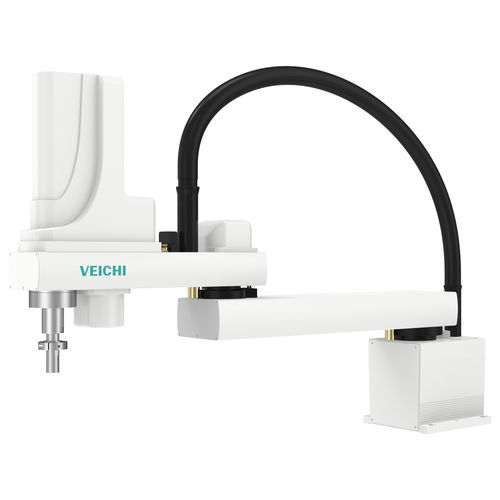

SCARA robot VCH100-800-900-1000
4-axisfor weldingfor press automation

SCARA robot
SCARA robot
Add to favorites
Compare this product


Characteristics

Type
SCARA
Number of axes
4-axis
Function
for welding, for press automation
Protection level
IP40
Payload

10 kg
(22.046 lb)

Reach

Max.: 1,000 mm
(39.37 in)

Min.: 800 mm
(31.5 in)

Repeatability

0.01 mm, 0.02 mm
(0.0004 in, 0.0008 in)

Speed

11,304 mm/s, 12,089 mm/s, 12,874 mm/s

Operating temperature

Max.: 45 °C
(113 °F)

Min.: 0 °C
(32 °F)

Noise level

85 dB

Weight

Max.: 50 kg
(110.2 lb)

Min.: 46 kg
(101.4 lb)

Description

VCH100-800-900-1000 series scara robot overview: VEICHI VCH100-800-900-1000 series scara robot is a high-performance industrial automation robot. Designed to enhance production efficiency and flexibility, this robot is ideal for electronic assembly, small parts handling, and other automated applications requiring accurate control. Product features: Payload: Capable of handling a payload of up to 10kg, suitable for a variety of light material handling and assembly tasks. Arm Reach: Features a 800/900/1000mm reach, ensuring precise operation within confined spaces.
