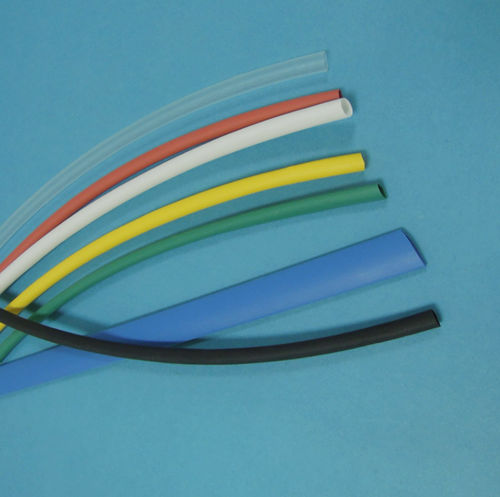

Protection tube DBRS-125H
halogen-freeflame-retardantflexible

Protection tube - DBRS-125H - Suzhou Volsun Electronics Technology Co.,Ltd - halogen-free / flame-retardant / flexible
Protection tube - DBRS-125H - Suzhou Volsun Electronics Technology Co.,Ltd - halogen-free / flame-retardant / flexible
Add to favorites
Compare this product


Characteristics

Applications
protection
Other characteristics
flexible, flame-retardant, halogen-free
Inner diameter

Max.: 150 mm
(5.906 in)

Min.: 0.35 mm
(0.014 in)

Pressure

10.4 MPa

Temperature

Max.: 125 °C
(257 °F)

Min.: -55 °C
(-67 °F)

Description

Halogen-freefire retardant heat shrinkable tubing, made of radiation cross-linkedpolyolefin, is designed with excellent physicochemical and electricalproperties. Typical applications include insulation of electrical connectionsor wire splices, rust and corrosion resistance for the soldered joints orconnections, mechanical and wiring harness protection and insulation inelectronics, communications, automotive, marine, aircraft manufacturing andother fields. Features ● Meets UL 224, CAN / CSA C22.2 NO198.1 -99 ● Heat shrink ratio : 2:1,3:1 ● Halogen-free , low-smoke generations , non-toxic , flexible , fire retardant ● Min. shrink temperature :84 ℃ ● Min. full recovery temperature :120 ℃ ● Environmental standards : RoHS , IPC/JEDEC-J-STD-709 Class H material ● Standard colors: black, white, red , yellow , Green, blue and other four international standard colors. More colors are available upon request.
