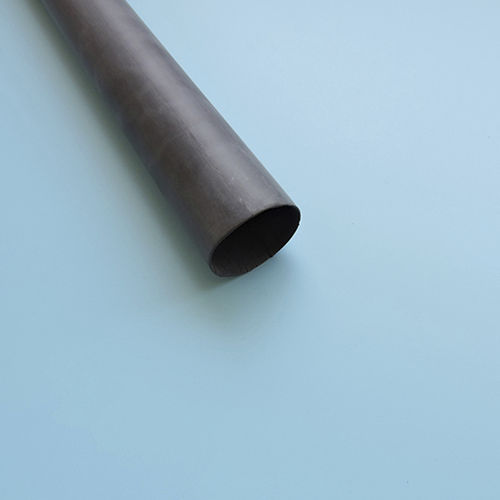

Polyolefin tube HBWJ-125G
electronicprocessinsulating

polyolefin tube
polyolefin tube
Add to favorites
Compare this product


Characteristics

Material
polyolefin
Applications
process, electronic
Other characteristics
flame-retardant, insulating, thick wall
Inner diameter

Min.: 2 mm
(0.079 in)

Max.: 100 mm
(3.937 in)

Pressure

14 MPa

Temperature

Min.: -55 °C
(-67 °F)

Max.: 125 °C
(257 °F)

Description

HBWJ-125G (3.5X)Flame retardant heat shrink tubing is made of polyolefin materials whose properties are modified through special ionizing radiation process with electronic accelerators. It is flame retardant and highly insulating with a relatively thicker wall than normal single wall tubing. This product is found in many applications esp. flame retardant requiring conditions like insulation and protection for high voltage cable middle connections, terminations and busbar as well as different kinds of pipelines for its excellent corrosion resistance, abrasion resistance. Features ● Flame retardant, environmental friendly ● Min shrink temperature: 80°C ● Min. full recovery temperature: 120°C ● Shrink ratio: 3.5:1 . ● RoHS compliant . ● Standard color: black, more colors are available upon request
