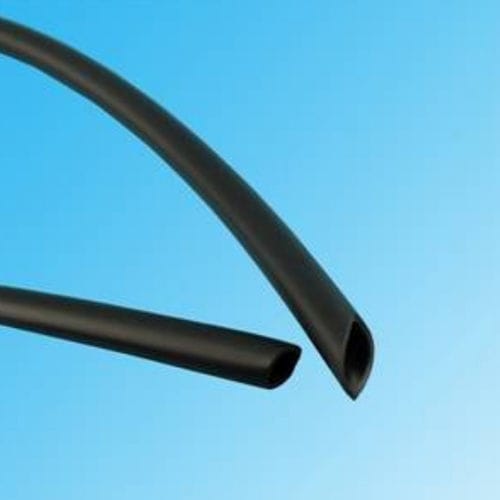

Hydraulic tube TZRS-VT200

fluoroelastomertransportelectronic

TZRS-VT200(2X) modified fluoroelastomer heat-shrinkable tubing is highly abrasion and cut-through resistant and can withstand a wide variety of fuels, lubricants, acids and highly corrosive fluids at temperatures up to 200°C. In addition to its high continuous operating temperature and chemical-resistance properties, this tubing is very flexible and is easily marked by hot-stamp or printwheel methods. When heated in excess of 175°C (347°F), TZRS-VT200(2X) tubing rapidly shrinks to a skintight fit. TZRS-VT200(2X) tubing is rated for continuous operation from –55°C (–67°F) to 200°C (392°F).135°C/275°F. Features ● Cross-linked fluoroelastomer ● Superior abrasion resistance ● High temperature resistance ● Excellent resistance to aggressive chemicals and solvents ● Available with various wall thickness ● Min. Full recovery temp.: 175 °C ● RoHS compliant ● Flammability: UL 224 VW-1 ● Meets: SAE-AMS-DTL-23053/13 Applications Because of its outstanding high temperature fluid performance, modified fluoroelastomer heat shrink tubing is often used to protect wiring and component covers in aircraft/aerospace applications including electronic control systems and hydraulic fluid transport mechanisms and in chemical plants. Shrink Ratio Modified fluoroelastomer heat shrink tubing has a 2:1 shrink ratio. When freely recovered, the tubing will shrink to 50% of its as-supplied internal d i a m e t e r. The recovered wall thickness is proportional to the degree of recovery.
