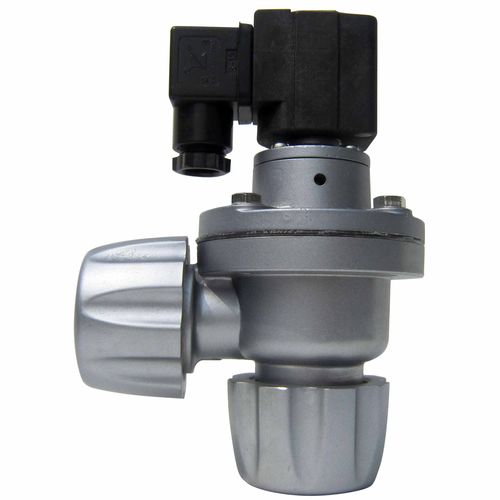

Diaphragm valve DCF-ZM-20 electricfor airpulse
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- electric
- Media
- for air
- Other characteristics
- pulse, electromagnetic
- DN
27 mm
(1.063 in)- Pressure
Max.: 600,000 Pa
(87 psi)Min.: 400,000 Pa
(58 psi)- Temperature
Max.: 85 °C
(185 °F)Min.: -25 °C
(-13 °F)
Description
Abstract：
Electromagnetic pulse valve modelDCF-ZM-20Connecting the vent tube outer diameter（mm）Φ27size（mm）A67B45C26D26E162F1
technical standard
Working pressure: 0.4~0.6MPa
Working medium: clean air
Voltage: DC24V, (AC220V/50HZ)
Use environment:
1 temperature: normal temperature diaphragm -25 ° C ~ 85 ° C
High temperature diaphragm -25 ° C ~ 230 ° C
Low temperature diaphragm -40 ° C ~ 80 ° C
2 The relative humidity of the air does not exceed 85%
Protection level: IP65
Diaphragm life: 5 years or 1 million times
