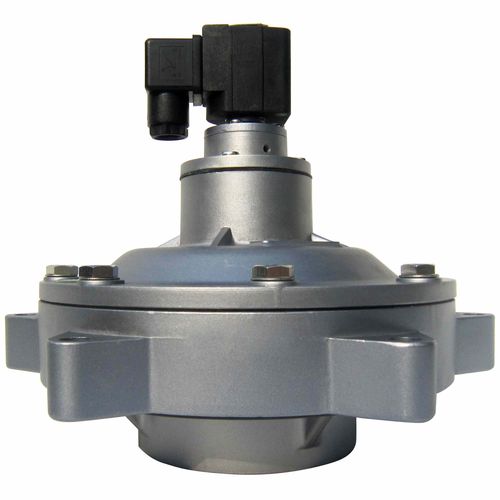

Diaphragm valve DCF-Y-76S electricfor airpulse
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- electric
- Media
- for air
- Other characteristics
- pulse, electromagnetic
- Pressure
Max.: 600,000 Pa
(87 psi)Min.: 200,000 Pa
(29 psi)- Temperature
Max.: 85 °C
(185 °F)Min.: -25 °C
(-13 °F)
Description
Abstract：
Electromagnetic pulse valve modelDCF-Y-76SInstallation reference dimensions with gas distribution box and nozzle conne
technical standard
Working pressure: 0.2~0.6MPa
Working medium: clean air
Voltage: DC24V, (AC220V/50HZ)
Use environment:
1 temperature: normal temperature diaphragm -25 ° C ~ 85 ° C
High temperature diaphragm -25 ° C ~ 230 ° C
Low temperature diaphragm -40 ° C ~ 80 ° C
2 The relative humidity of the air does not exceed 85%
Protection level: IP65
Diaphragm life: 5 years or 1 million times
